Dynamic Checkweigher Manufacturer | Custom Online Weighing Systems
Real-time WeighingAutomatic RejectionCustomization supported
The SameGram intelligent checkweigher has passed multiple international standard certifications, including CE and ISO, supports various weight ranges, and has a processing speed of 40-90 pieces per minute. It is suitable for end-of-line weight checks in multiple industries such as food, pharmaceuticals, chemicals, and logistics.
- Introduce
- Featured
- Products
- Support
- Cases
- FAQ
- Technical Guide
What is a checkweigher？
The Samegram checkweigher is a device that can continuously detect weight on the production line, mainly used for real-time weighing and automatic rejection of products that do not meet weight standards. It does not require stopping the conveyor belt; products are weighed instantly as they pass through the weighing platform. It can automatically sort missing or incomplete products or classify them by weight.
Solve the Most Common Production Challenges
- Product scrap due to inaccurate filling
- Compliance risks due to insufficient product weight
- Waste due to excessive product weight
- Production downtime due to unstable weighing
Dynamic Checkweigher Working Principle
A dynamic checkweigher typically consists of three continuous conveyor sections:
Infeed belt
Products enter the feeding section from the upstream conveyor line. Photoelectric sensors detect the product position and control the spacing between products, ensuring they enter the weighing section one after another evenly.

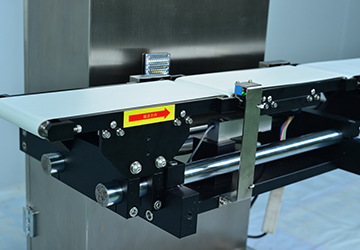

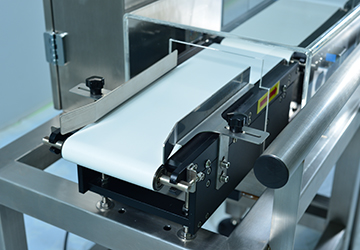

Weighing belt
As products pass through the weighing platform at a constant speed, sensors continuously collect weight signals in real time. The system uses digital filtering and dynamic compensation algorithms to deduct the conveyor belt's own weight, vibration interference, and dynamic forces during product acceleration/deceleration, obtaining an accurate net product weight.
Outfeed belt
The system determines the product's destination based on the weighing results: qualified products continue forward, while unqualified products are discarded. Simultaneously, data (weight, qualified/unqualified, time, batch, etc.) is recorded and can be uploaded to an MES/ERP system via network connectivity.
Technical Advantages of Our Automatic Checkweigher
Our weighing solutions
SameGram dynamic checkweighers provide real-time weight detection while the production line is running at full speed. After accurate weighing, products are smoothly sorted by the sorting device into underweight, overweight, and optimal weight categories without interrupting your production process.

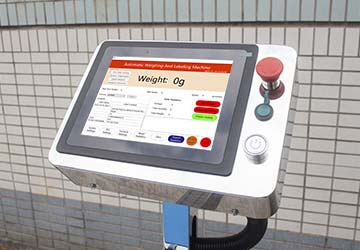

Human-computer interaction Control system:
- Online weighing control system V1.0.5
- Color touchscreen display, 100 preset functions for products;
- Weighing information is traceable and supports one-click export to USB flash drive.
Intelligent Weighing:
Insufficient display yellow indicator light; Qualified display green indicator light; Excessive display red indicator light.
Hygienic Design
Made of 304 stainless steel, with a closed or cleanroom design, offering a high level of protection, easy cleaning, and compliance with hygienic design standards. Ideal for food and pharmaceutical production environments.
High-Speed Checkweighing
Utilizing technologies such as Electromagnetic Force Compensation (EMFR), it maintains extremely high accuracy even at speeds of 120 pieces/minute. Different models support products ranging from a few grams to tens of kilograms, with an error range of +0.1g to a few grams.
Data Linkage
Supports stricter traceability and error prevention requirements, providing Ethernet, USB, and other interfaces, enabling connection with MES/ERP, packaging machines, metal detectors/X-ray machines, etc., to upload weight data and alarm information in real time.
Integrable modules

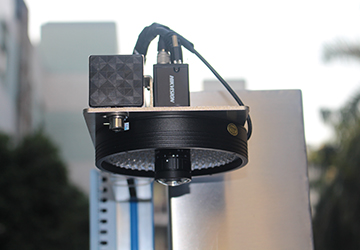

Integrable Automatic label printing and application; Metal foreign object detection; X‑ray foreign object detection. Suitable for the food, pharmaceutical, agricultural, and logistics industries, with broad product compatibility.
SameGram inline checkweigher selection guide

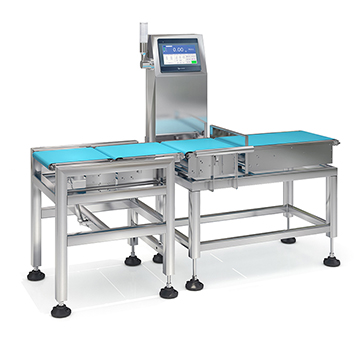

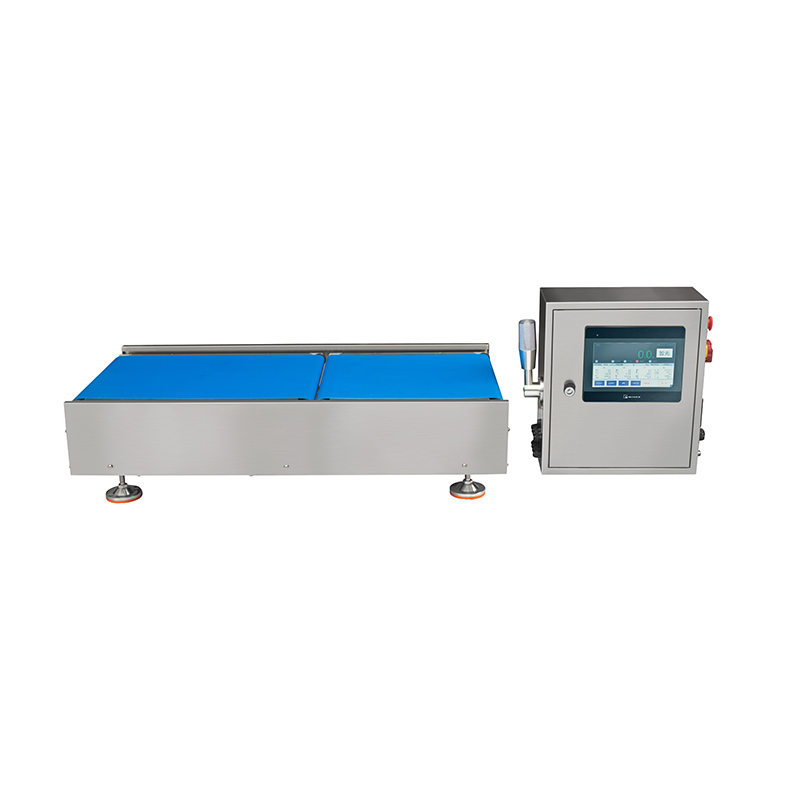

Dynamic Checkweigher SC2-8050L30SC2-8050L30 is a high-capacity inline dynamic checkweigher for up to 30 kg. It enables real-time weight inspection without slowing throughput, ensuring accuracy, consistency, and efficiency.
- Weighting range
- 0.05-30kg
- Weighting accuracy
- ±3-10g
- Belt speed
- 5-90m/min

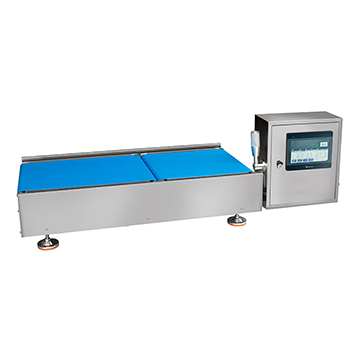

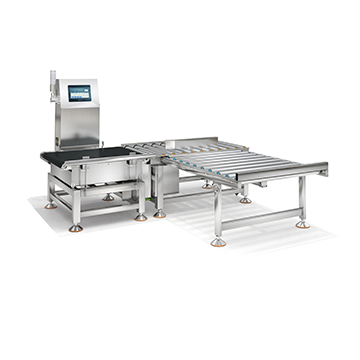

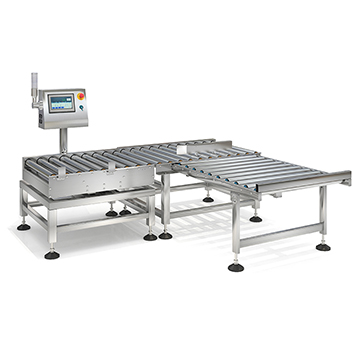

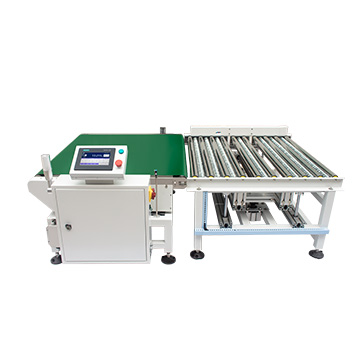

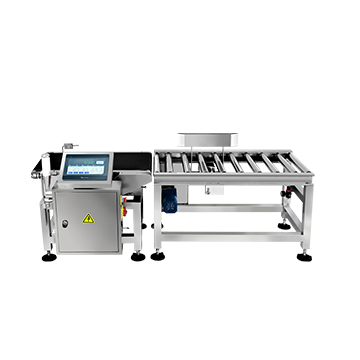

Dynamic Roller Checkweigher SC3-10060L30Dynamic Roller Checkweigher SC3-10060L30 is an inline conveyor scale and full case checkweigher for large packages, ideal for checkweigher systems.
- Weighting range
- 1-30kg
- Weighting accuracy
- ±15-30g
- Belt speed
- 5-60m/min
End-of-line Checkweighers SC3-10060L50The SC3-10060L50 is a dynamic checkweigher machine and heavy automatic checkweigher designed for large items. It’s an end of line checkweigher with built-in rejector, from a trusted hi speed checkweigher co.
- Weighting range
- 0.05-50kg
- Weighting accuracy
- ±5-20g
- Belt speed
- 5-90m/min

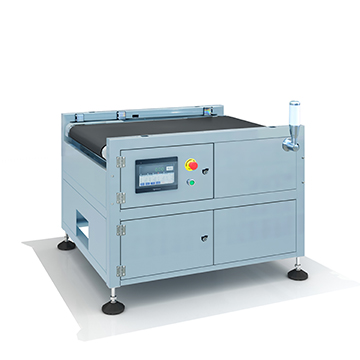

High‑Speed Dynamic Weighing Scale SC3-L-12080S60The SC3-L-12080S60 is one of the best parcel weighing scales for large-item logistics. It’s ideal to weigh parcel, weigh out logistics, and handle bulky goods on logistics scales.
- Weighting range
- 1-60kg
- Weighting accuracy
- ±10-30g
- Belt speed
- 5-120m/min

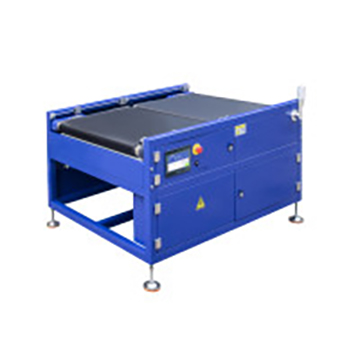

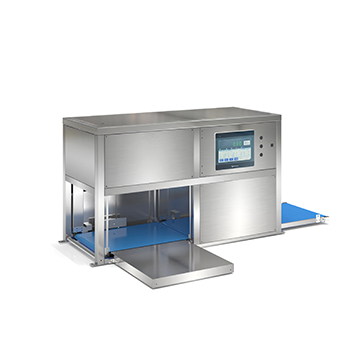

Large Parcel Dynamic Weighing Scale SC3-LproSC3-Lpro is a checkweigher for large volume logistics. With a 2000×1500mm platform, it integrates advanced weighing systems for logistics with barcode scanning and dimensioning of oversized parcels and pallets.
Heavy Automatic Checkweigher SC3-10070L80The SC3-10070L80 is a heavy duty checkweigher with checkweigher roller conveyor, ideal for large items. This industrial dynamic checkweigher delivers hi-speed precision in tough environments.
- Weighting range
- 1-80kg
- Weighting accuracy
- ±10-30g
- Belt speed
- 5-90m/min

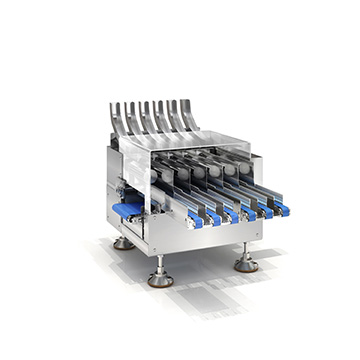

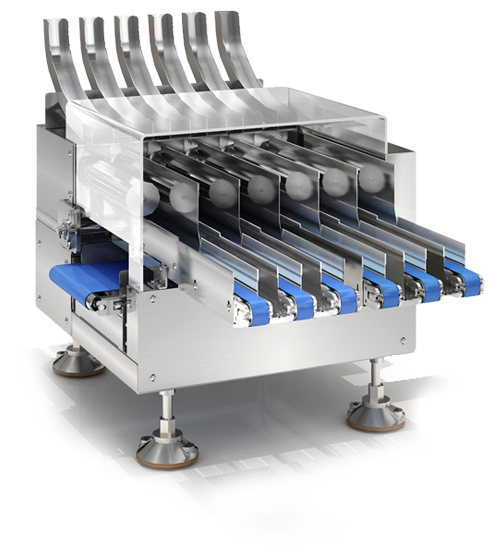

Multi-lane Checkweigher SCP6SCP6 is a dynamic checkweighing system for precision weighing of small packages. Ideal as a tablet checkweigher or stickpack checkweigher, it supports multi-lane control, fast data export, and GMP compliance.
- Weighing Range
- 0.1-100g
- Weighting accuracy
- ±0.02-0.05g
- weighing speed
- 40-50 cuts/minute
Dual Lane Checkweigher SCP2SCP2 is a dual lane checkweigher offering modular checkweighing and precision weighing. Ideal food checkweighers and checkweigher equipment for fast production lines.
Checkweigher for Small Packages SC1-C-3523L1SameGram CW-S-5040L5 High-Speed Dynamic Checkweigher, suitable for high-speed packaging.
- Weighting range
- 1-1000g
- Weighting accuracy
- ±0.02-0.1g
- weighing speed
- 1-35pieces/min

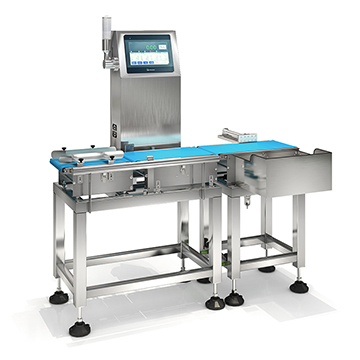

Hi Speed Dynamic Checkweigher SC1-5040L5SC1-5040L5 is an economy, hi speed, standard dynamic belt checkweigher ideal for in line dynamic weight checking with high precision and reliability.
- Weighting range
- 1-5000g
- Weighting accuracy
- ±05-3g
- Belt speed
- 5-90m/min
Hygienic Checkweigher SCF-4523L3SCF-4523L3 is a washdown checkweigher with precision checkweighing for food industry use. Built for wet environments, its hygienic design checkweighing system offers safety, flexibility, and seamless line integration.
- Weighting range
- 1-3000g
- Weighting accuracy
- ±0.3-2g
- Belt speed
- 5-90m/min

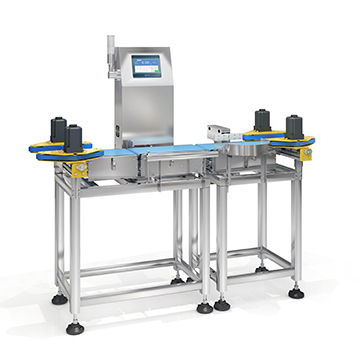

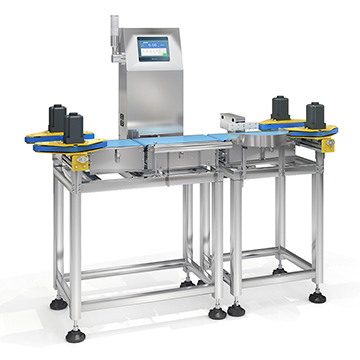

Can CheckweigherChain checkweigher designed for cans and bottles. This automatic checkweighers solution is a reliable online checkweigher machine and checkweighing system for bottling.
Light-Mid Weight Checkweigher for up to 15 kg SC2-8040L15SC2-8040L15 is an automatic weigh price label system with advanced data tracking and flexible speed control. Ideal for weigh price labeling and weighing labeling tasks in high-precision packaging lines.
- Weighting range
- 0.05-15kg
- Weighting accuracy
- ±3-10g
- Belt speed
- 5-90m/min
In-line Checkweigher SC-PR-4530L3SC-PR-4530L3 is a precision checkweigher for color box packaging lines. This dynamic checkweigher system for precision weighing installs directly on conveyors, requiring no layout changes or extra space.
- Weighting range
- 1-3000g
- Weighting accuracy
- ±0.5-2g
- Belt speed
- 5-40m/min
High-Precision Dynamic Weighing Scale for Small Parcel SC2-L-6055S5The SC2-L-6055S5 is a high-speed logistics scale for parcel weighing. Designed for fast, accurate weighing out logistics, it's ideal for modern scales for logistics industry needs.
- Weighting range
- 1-3000g
- Weighting accuracy
- ±1-5g
- Belt speed
- 5-120m/min
Multi-lane Checkweigher SCP6SCP6 is a dynamic checkweighing system for precision weighing of small packages. Ideal as a tablet checkweigher or stickpack checkweigher, it supports multi-lane control, fast data export, and GMP compliance.
- Weighting range
- 0.1-100g
- Weighting accuracy
- ±0.02-0.05g
- weighing speed
- 40-50 cuts/minute
- High‑Speed Dynamic Weighing Scale SC3-L-12080S60
The SC3-L-12080S60 is one of the best parcel weighing scales for large-item logistics. It’s ideal to weigh parcel, weigh out logistics, and handle bulky goods on logistics scales.
- Weighting range
- 1-60kg
- Weighting accuracy
- 10-30g
- Belt speed
- 5-120m/min
Large Parcel Dynamic Weighing Scale SC3-LproSC3-Lpro is a checkweigher for large volume logistics. With a 2000×1500mm platform, it integrates advanced weighing systems for logistics with barcode scanning and dimensioning of oversized parcels and pallets.
DualScale for Dynamic Parcel Weighing SC-L-8070L20The SC-L-8070L20 is a dynamic parcel weighing scale designed for fast, accurate parcel weigh. Ideal for logistics, it ensures precise weighing of parcels on single platforms.
High-Precision Dynamic Weighing Scale for Small Parcel SC2-L-6055S5The SC2-L-6055S5 is a high-speed logistics scale for parcel weighing. Designed for fast, accurate weighing out logistics, it's ideal for modern scales for logistics industry needs.
- Weighting range
- 1-5000g
- Weighting accuracy
- ±1-5g
- Belt speed
- 5-120m/min
Static Logistics Checkweigher SCP-LSCP-L is a static parcel weighing scale with integrated printing, ideal for warehouses needing fast, accurate parcel weigh solutions in mixed-product shipping lines.

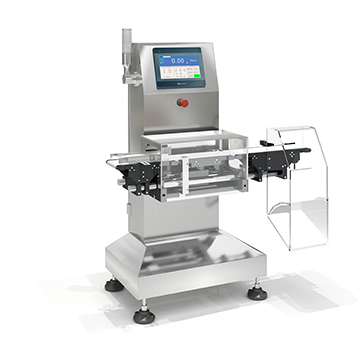

High Accuracy Checkweigher SC1-H-3512L1SC1-H-3512L1 is a high accuracy, intelligent dynamic checkweigher designed for motion checkweighing in high speed checkweigher systems and inline use.
- Weighting range
- 1-1000g
- Weighting accuracy
- ±0.03-0.1g
- Belt speed
- 5-90m/min
Checkweigher for Small Packages SC1-C-3523L1SC1-C-3523L1 is the best checkweigher machine for small packages, ideal for cosmetic product checkweighing. This compact, automatic checkweigher offers precise weight control in small in-motion checkweighers setups.
- Weighting range
- 1-1000g
- Weighting accuracy
- ±0.02-0.1g
- weighing speed
- 1-35pieces/min
Multi-lane Checkweigher SCP6SCP6 is a dynamic checkweighing system for precision weighing of small packages. Ideal as a tablet checkweigher or stickpack checkweigher, it supports multi-lane control, fast data export, and GMP compliance.
- Weighing Range
- 0.1-100g
- Weighting accuracy
- ±0.02-0.05g
- weighing speed
- 40-50 cuts/minute
Dynamic Checkweighers for Ex Zones SC-EPSC-EP is a hi-speed checkweigher for Ex zones, offering customization dynamic checkweigher solutions with IP65 belt checkweighers from trusted scale supplier.
Can CheckweigherChain checkweigher designed for cans and bottles. This automatic checkweighers solution is a reliable online checkweigher machine and checkweighing system for bottling.
Hygienic Checkweigher SCF-4523L3SCF-4523L3 is a washdown checkweigher with precision checkweighing for food industry use. Built for wet environments, its hygienic design checkweighing system offers safety, flexibility, and seamless line integration.
- Weighting range
- 1-3000g
- Weighting accuracy
- ±0.3-2g
- Belt speed
- 5-90m/min
Checkweigher Product Comparison Guide
Light to Medium-weight Checkweigher
| Model | Weighing range | Weighing Accuracy | Weighing speed | Shell Material | Application | Features | |
|---|---|---|---|---|---|---|---|
 | Dynamic Checkweigher SCF-4523L3 | 1-3000g | ±0.3-2g | 5-90m/min | 304 stainless steel | Hygiene-critical applications: food, pharma, supplements, cosmetics | Food grade, extremely hygienic |
 | High Accuracy Checkweigher SC1-H-3512L1 | 1-1000g | ±0.03-0.1g | 5-90m/min | 304 stainless steel | Pharmaceuticals, Food & Beverage, Personal Care & Cosmetics, and other high-precision small-package applications | High precision, small range |
 | Conveyor checkweigher SCP2-3516L02 | 1-200g | ±0.1-±0.3g | 20-60m/min | 304 stainless steel | Pharmaceuticals, Confectionery, Personal Care & Cosmetics, and Bakery for high-precision small-package checkweighing | Two weighing platforms offer higher throughput，Customizable 3 columns |
 | Food packaging checkweigher SCP6 | 0.1-100g | ±0.02-0.05g | 40-50 cuts/minute | 304 stainless steel | Pharmaceuticals, Food & Packed Products, and Personal Care & Cosmetics for stick packs and small pouch checkweighing | Vertical six-row design for small strip-shaped packages; up to 12 rows customizable |
 | Weight sorting checkweigher SC1-C-3523L1 | 1-1000g | ±0.02-0.1g | 1-35pieces/min | 304 stainless steel | Pharmaceuticals, Personal Care & Cosmetics, Confectionery & Snacks, and Small Metal/Plastic/Electronic Components for high-precision forward & reverse checkweighing | Forward & reverse rotation for cost-effective diversion of small packaged products |
 | Belt checkweigher SC1-5040L5 | 1-5000g | ±05-3g | 5-90m/min | 304 stainless steel | Printed Materials (books, postcards, cards, envelopes) with missing/extra page detection | High speed, with photoelectric sensing. |
 | Inline Checkweigher SC-C | 1-3000g | ±0.5-±2g | 5-90m/min | 304 stainless steel | Bottled Products — including condiments, beverages, bottled cosmetics (lotions, serums, nail polish), pharmaceuticals, and health supplements | Equipped with bottle holder, designed for bottled products |
Heavy-duty Checkweigher
| Model | Weighing range | Weighing Accuracy | Weighing speed | Shell Material | Application | Features | |
|---|---|---|---|---|---|---|---|
 | Carton checkweigher SC2-8040L15 | 0.05-15kg | ±3-10g | 5-90m/min | 304 stainless steel | Logistics, warehousing, food processing, manufacturing and other operations handling medium-weight cartons and boxed goods (up to ~15 kg) | For medium-weight (≤15 kg), large-size products |
 | Case checkweigher SC3-10060L50 | 0.05-50kg | ±5-20g | 5-90m/min | Carbon steel spary painting | Warehousing & Logistics, Food & Beverage (dry goods, grains, seafood, meat), and other packaged products requiring shipment weight control | Large platform, easy for big/heavy items；Front console, convenient operation |
 | Case weight checking machine SC3-8050L30 | 0.05-30kg | ±3-10g | 5-90m/min | 304 stainless steel | Large-package checkweighing for Pharmaceuticals, Cosmetics, Dairy, Bakery & Confectionery, Chemicals, and Logistics | Compact platform, space-saving；Rear console, ideal for High density/heavy items |
 | Feed weighing equipment SC3-10070L80 | 1-80kg | ±10-30g | 5-90m/min | Carbon steel spray painting | Home Appliances, Hardware & Tools, Industrial Equipment, Automotive Parts, Electronics, Furniture, Chemicals, and Packaged Food & Beverages | For large and heavy bagged or boxed products across industries |
 | Stainless steel checkweigher SC3-10060L30 | 1-30kg | ±15-30g | 5-60m/min | 304 stainless steel | Dairy, Eggs, Dry Goods & Grains, Packaged Food & Beverages, Electronics & Toys, and Warehousing/Logistics，for cartons, bags, boxes, and bulk packages | Roller platform — economical, durable, ideal for heavy packaged products |
Scales Used for Logistic
| Model | Weighing range | Weighing Accuracy | Weighing speed | Shell Material | Application | Features | |
|---|---|---|---|---|---|---|---|
 | Net weight checkweigher SC3-L-12080S60 | 1-60kg | 10-30g | 5-120m/min | Carbon steel spray painting | Parcel Sorting Centers, E-commerce Warehouses, Courier & Express Hubs, and 3PL/Cross-Border Logistics，for dynamic weighing of parcels, polybags, envelopes, and cartons | High-speed logistics scales have a wide range of applications. |
 | Dynamic Weighing Scale SC2-L-6055S5 | 1-5000g | ±1-5g | 5-120m/min | 304 stainless steel | E‑commerce, parcel sorting, courier & express, 3PL, and warehousing — handling parcels, polybags, envelopes, and cartons | High-speed for light packages |
 | belt checkweigher SC-L-8070L20 | 1-20kg | ±3-10g | 5-120m/min | Carbon steel spray painting | E‑commerce, parcel sorting, courier/express, 3PL and warehousing for small to medium parcels and cartons | Two platforms — designed for higher throughput |
 | Packaging checkweigher SCP-L | Custom-made | Depends | Manual | Carbon steel spray painting | E‑commerce fulfillment, warehouse outbound checks, courier pickup stations, and sorting/distribution centers for parcels, polybags, envelopes and cartons | Static scales for manual weighing and labeling — highly flexible |
 | Heavy duty checkweigher SC3-Lpro | Custom-made | Depends | Depends | Carbon steel spray painting | Logistics hubs, customs/bonded warehouses, e-commerce fulfillment centers, and distribution operations handling oversized parcels, pallets and heavy freight | Extra-large, custom-built for customs weighing |
Find the Right Checkweigher for Your Line
Why Choose SameGram?
Whether you are an end-user factory, system integrator, or local agent, we can help customers improve production line efficiency, ensure product safety and compliance, and provide stable checkweigher service support throughout the entire life cycle through highly reliable checkweighing and automation solutions.
- Over 15 years of weighing technology expertise
- Customized production line upgrade solutions based on needs
- Proven installations worldwide
SameGram One-Stop Service
Selection, Design, Installation guidance, Training, Remote support, Spare parts, and Solution upgrades.
Customized solutions
SameGram provides customized checkweigher system solutions based on different product weight ranges, packaging formats, and production line speeds. Facing rapid market changes (such as new product launches, packaging upgrades, or order fluctuations), the system is highly flexible, supporting rapid parameter adjustments, module expansion, and future upgrades, ensuring long-term adaptability to business development.
Training and Equipment Maintenance
SameGram provides customers with systematic technical training covering weighing system operation, accuracy calibration, data management, and troubleshooting of common faults, ensuring continuous and stable production operation.
The equipment's structural design emphasizes reliability and ease of maintenance, resulting in simple daily maintenance, a low failure rate, and a stable supply of key spare parts.
Professional certification and technical support
For customers in the food, beverage, and pharmaceutical industries, the equipment design strictly adheres to hygiene and safety standards, featuring excellent cleanability and contamination-resistant structural design to meet various industry regulations. Checkweighing and testing equipment directly impacts product net content compliance, customer audits, and third-party certification requirements, such as HACCP and GMP.
Increased Production Line Efficiency
The checkweigher system seamlessly integrates with automated production lines, increasing output per unit time and effectively reducing congestion and production bottlenecks. It can significantly reduce downtime, decrease reliance on manual labor through automated testing, lower scrap rates and return risks, and create higher overall production value for enterprises.
Industries Applicable To Checkweighers
Pharmaceuticals and health products
Tablet & capsule inspection
Blister packs
Cartons & vials
Liquid medicine
Benefits: Full traceability, regulatory compliance (GMP)
Food & Beverage Checkweighers
Bakery products
Meat & poultry
Frozen foods
Snacks & confectionery
Benefits: Reduced giveaway, hygiene‑compliant wash‑down design
Cosmetics & Consumer Goods
Bottled serum
Tube ointment
Multi-pack essential oils
Face mask packaging
Benefits: Ensure product compliance, consistency, and safety
Checkweigher Application Cases

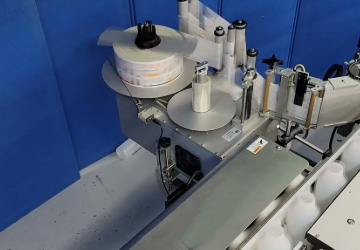

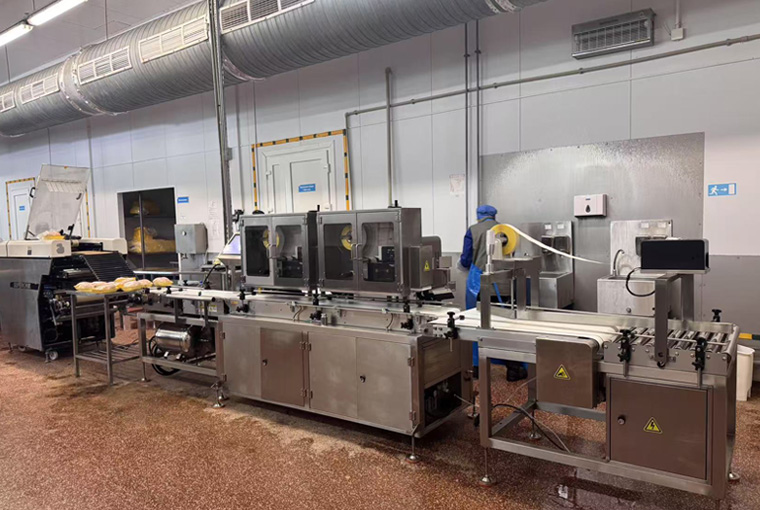

SameGram customized an automated weighing system with real-time printing and labeling for a pre-processed food plant in Belarus. This system meets multiple needs, including high-precision weighing, automatic printing of labels on both sides, automatic labeling, and water-washable operation. The equipment operates stably, helping the client save 60% on labor costs and significantly improving automation levels.
- Industry:
- Food Processing
- Equipment:
- Weighing and Four-Printing Head Labeling Machine
- Country:
- Belarus
faq
Frequently Asked Questions
- Q: What is a dynamic checkweigher?Dynamic weighing ensures 100% inline inspection.A:Dynamic checkweigher automatically weighs products while moving on a conveyor, without stopping production.
- Q: What information is required for a custom checkweigher order?Learn what key details you need to provide—like product size, weight range, speed, and layout—to request a custom checkweigher or inspection system from SameGram. Fill out the online form for tailored solutions.
A:
To help us design the most suitable weighing or inspection solution for your needs, please provide the following:· Product dimensions· Weight range· Production speed· Production line layoutFor a faster and more accurate recommendation, we encourage you to fill out our Product Selection Form here: - Q: What standard weighing solutions does SameGram offer?SameGram provides industry-specific checkweighing and inspection solutions tailored to sectors like food, pharmaceuticals, daily chemicals, logistics, and electronics.
A:
SameGram offers checkweighing and inspection solutions for industries such as food, pharmaceuticals, daily chemicals, logistics, and electronics.
- Q: Are you a manufacturer or a trading company?SameGram is a professional manufacturer specializing in the design, production, and sales of automated weighing and inspection equipment. With in-house R&D and manufacturing capabilities, we provide high-quality customized solutions to meet various industrial needs.
A:
We are a specialized manufacturer of automated weighing and inspection equipment, founded in 2016, with over 15 years of industry experience, ISO9001 and CE certified.
- Q: What should I do if the machine malfunctions?SameGram offers reliable support for equipment malfunctions, including remote diagnostics, spare parts shipping, and on-site repair services to minimize downtime.
A:
If a malfunction occurs, SameGram provides comprehensive after-sales support including remote diagnostics, spare parts delivery, and on-site troubleshooting and repair by our engineers.
- Q: What is the weighing accuracy of SameGram machines?SameGram checkweighers provide high-precision weighing, with accuracy ranging from ±0.02 g to ±10 g, depending on model and load — ensuring reliable performance for both light and heavy products.
A:
SameGram checkweighers offer high-precision performance with weighing accuracy ranging from ±0.02 g to ±10 g, depending on the model and product weight. For example, our SC1-C-3523L1 model delivers up to ±0.02 g precision for small items, while heavy-duty mo±3–10 g accuracy for loads up to 30 kg.
