Intelligent X-ray Inspection System Solutions from Source to Shelf
The Risk Map
Where Contamination Enters Your Line

Defects in Packaged Goods
Metal, glass, stone and seal leaks can reach the customer inside perfect-looking packaging — the exact point where brand trust is won or lost.

Contamination at the Source
A single stone or metal fragment in bulk ingredients can be processed through an entire batch before anyone notices — multiplying loss and equipment risk.

Hidden Bones in Seafood
"Boneless" claims fail when fine bones slip past manual inspection. One complaint can block entry to premium restaurant and infant-food markets.
SameGram X-ray Inspection Solutions: Catch Foreign Contaminants Before They Become Costly Recall

The Purifier Solution for Bulk & Raw Materials
Application:Deployed at the front of the line for all loose, unpackaged raw materials like grains, nuts and beans
Core Value:Eradicate contamination at the source. Before a foreign body can be broken down, mixed, and cause widespread contamination or equipment damage, our system identifies and removes it with a high-speed, precise rejection mechanism. This is your most cost-effective line of defense.
Bulk Goods X-ray Inspection Systems

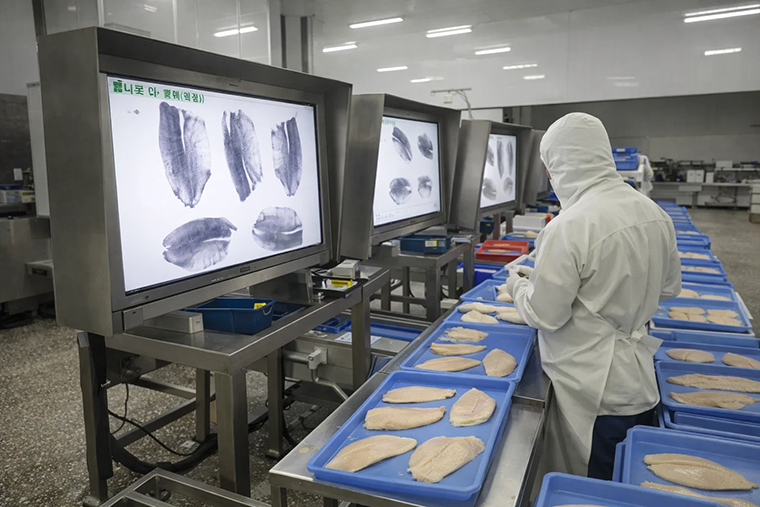

The Specialist Solution for Seafood Safety
Application:Purpose-built for seafood processing lines to detect fine bones in products like fish fillets and portions.
Core Value:Fulfill your "boneless" quality promise with absolute confidence. Using industry-leading low-energy X-ray imaging, it pinpoints minute residual bones that manual inspection can never guarantee, empowering your entry into premium restaurant, infant food, and other high-end markets.
Fish Bone X-ray Inspection System
Standard Inspection for Packaged Goods
Application:The essential final quality check for a wide variety of packaged goods (pouches, cartons, trays, etc.). Ideal for detecting common, dense contaminants and ensuring overall product integrity.
Core Value:This is your frontline defense and the workhorse of your production line. It provides robust, reliable protection against common foreign bodies like metal, glass, and stone, while also checking for basic packaging defects. Safeguarding every product that leaves your factory, and protecting your brand reputation.
Standard X-ray Inspection System
The Precision Guardian Solution: High-Definition Inspection
Application:Designed for complex products, premium goods, or challenging packaging formats (e.g., foil, multi-layered materials, irregular shapes). Essential for detecting low-density contaminants or performing intricate quality checks.
Core Value:When standard detection isn't enough, the Precision Guardian delivers uncompromising certainty. It utilizes advanced sensor technology and sophisticated software to find what others miss—including low-density plastics, rubber, and minute bone fragments within complex products. This is the ultimate solution for scenarios requiring the highest level of assurance or for engaging in competitive environments.
High-precision X-ray Inspection SystemWhich product is a good fit for your product line?

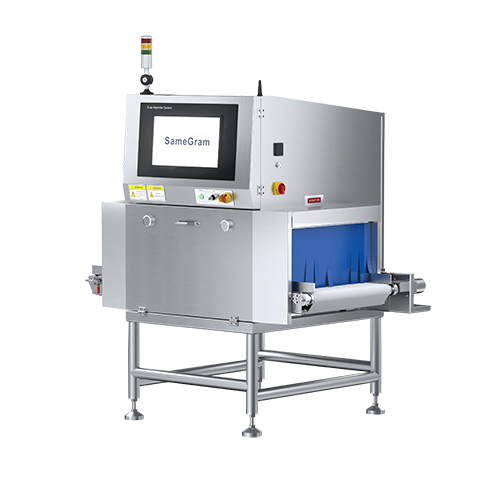

Standard Machine for X ray Inspection Machine XSS series
Application: The essential final check for pouches, cartons and trays — snacks, meat, dairy, pharma, cosmetics.
Core value: The reliable workhorse of your line. Detects metal, glass, ceramic and stone while also checking seal integrity — safeguarding brand reputation on every product shipped.

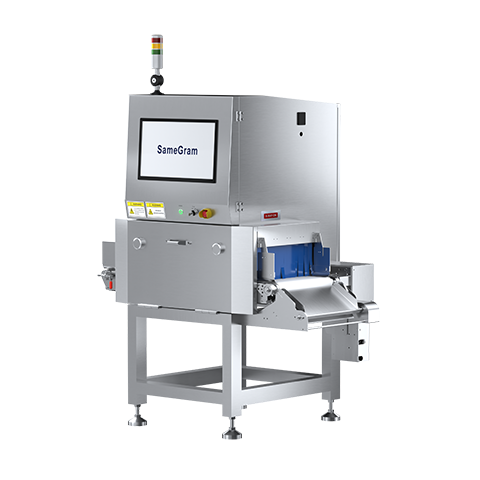

High-precision X-ray Inspection Systems XHS Series
Application: Complex, premium or challenging formats — foil, multilayer, irregular shapes, low-density products.
Core value: When standard detection is not enough. TDI imaging finds what others miss — low-density plastics, rubber, minute bone fragments — for brands that compete on superior quality.

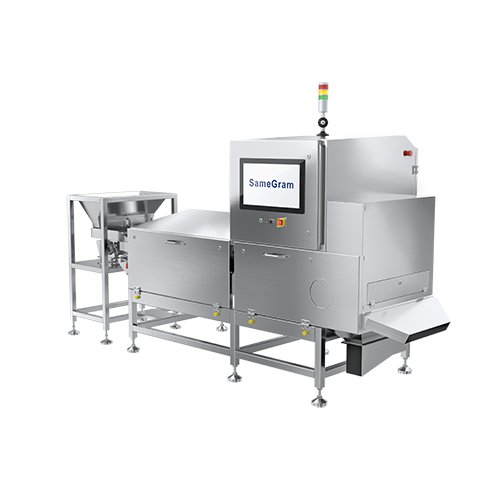

Bulk Goods X-ray Inspection Systems XSS-S Series
Application: Deployed at the front of the line for loose, unpackaged raw materials — grains, nuts, beans, tea.
Core value: Eradicate contamination at the source — before a foreign body is broken down, mixed in, and spreads through the batch or damages equipment. Your most cost-effective line of defense.

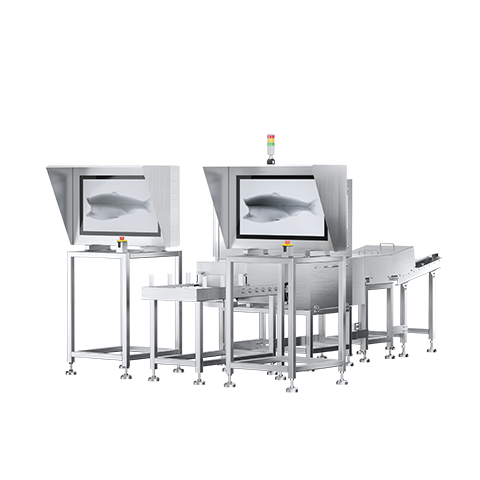

Fish Bone X-ray Inspection System XSS-F-4610
Application: Purpose-built for seafood lines — fish fillets and portions where fine bones must be removed.
Core value: Fulfill your "boneless" promise with verified confidence. Detects non-calcified bones manual inspection can never guarantee — unlocking premium restaurant, infant-food and export markets.
Comparison of X-ray Machine Parameters
All four share SameGram's self-developed Sooview software, 21.5" touchscreen and food-grade stainless-steel build. Choose by control point and product type.| Product Name | Best for | Key detection | Speed | Standout capability |
|---|---|---|---|---|
| XSS (Standard) | Bagged / boxed goods: snacks, meat, dairy, pharma | SUS 0.4 / glass 1.0 / wire 0.2×5 mm | 10–60 m/min | + Seal / air-leak detection, 4G |
| XHS (Precision) | Foil / multilayer / low-density products | 0.2 mm resolution, low-density items | 10–60 m/min | TDI HD, minimal motion blur |
| XSS-S (Bulk) | Loose raw materials: grains, nuts, tea, beans | Foreign body down to 0.4 mm | 60–90 m/min | Source interception, >99% reject accuracy |
| XSS-F-4610 (Fish Bone) | Seafood fillets & portions | Fish bone down to 0.05 mm | 10–25 m/min | 4K bone localization + reject |
Successful Cases
What Our Customers Say
Complete Your Inspection Line
Metal Detectors
Cost-effective first line for many packaged goods; the natural comparison point to X-ray for conductive contaminants.
Why X-ray vs metal detectorCheckweighers
Add weight control alongside contaminant detection. Pairs directly with X-ray on the same conveyor for combined QA.
View checkweigherIntegrated Detection System
Integrated X-ray + checkweigher + metal detector in one footprint — fewer transfers, one data log, lower total cost.
View combination systemsfaq
Frequently Asked Questions
- Will it work with my product and packaging?Detection figures are typical unloaded values and vary with product density and pack format. SameGram offers on-site testing and a 1000+ SKU library to confirm performance before purchase.
- Does it detect non-metal contaminants like plastic or paper?Yes. Beyond metal, glass, stone, and bone, the systems detect dense rubber, hard plastics, ceramics, and internal paper inserts left in sealed packs.
- Can it inspect aluminum foil or metallized packaging?Yes. Unlike metal detectors, X-ray detects contaminants inside foil, metallized film, and multilayer packaging by density, not conductivity.
- Is X-ray inspection safe for operators?Yes. SameGram X-ray systems keep operator radiation leakage below 1 µSv/h and stop the beam via enclosure interlocks when opened.
- Q:In which industries can SameGram's X-ray inspection systems bse used?SameGram X-ray inspection systems are designed for the food industry, including packaged, bulk, and seafood products, and can detect contaminants such as metal, glass, stones, bones, and hard plastics, ensuring product safety and quality.
