Dynamic Checkweigher | Inline Weighing Systems - Manufacturer SameGram
Real-time WeighingAutomatic RejectionCustomization supported
The SameGram intelligent checkweigher has passed multiple international standard certifications, including CE and ISO, supports various weight ranges, and has a processing speed of 40-90 pieces per minute. It is suitable for end-of-line weight checks in multiple industries such as food, pharmaceuticals, chemicals, and logistics.
- Introduce
- Featured
- Products
- Support
- Cases
- FAQ
- Blog
What is a checkweigher？
The Samegram checkweigher is a device that can continuously detect weight on the production line, mainly used for real-time weighing and automatic rejection of products that do not meet weight standards. It does not require stopping the conveyor belt; products are weighed instantly as they pass through the weighing platform. It can automatically sort missing or incomplete products or classify them by weight.
Solve the Most Common Production Challenges
- Product scrap due to inaccurate filling
- Compliance risks due to insufficient product weight
- Waste due to excessive product weight
- Production downtime due to unstable weighing
Technical Advantages of Our Automatic Checkweigher
Our weighing solutions

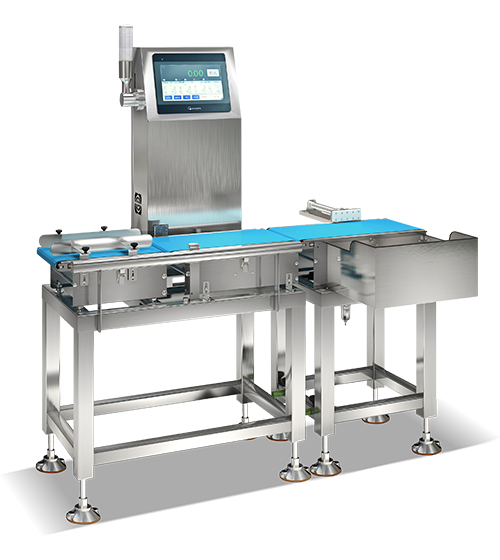

SameGram dynamic checkweighers provide real-time weight detection while the production line is running at full speed. After accurate weighing, products are smoothly sorted by the sorting device into underweight, overweight, and optimal weight categories without interrupting your production process.
Human-computer interaction Control system:
- Online weighing control system V1.0.5
- Color touchscreen display, 100 preset functions for products;
- Weighing information is traceable and supports one-click export to USB flash drive.
Intelligent Weighing:
Insufficient display yellow indicator light; Qualified display green indicator light; Excessive display red indicator light.
Hygienic Design
304 Stainless steel build, easy to clean, ideal for food and pharmaceutical production environments.
Versatile Applications
Fits food, pharma, agriculture, and logistics industries with wide product compatibility.
Real-Time Detection
Instant detection of weight errors with optional rejection and quality data logging.
Integrable modules
Automatic label printing and application;

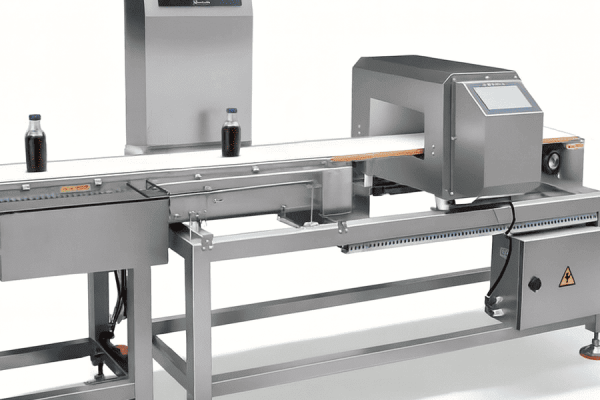

Metal foreign object detection;
X‑ray foreign object detection.
SameGram inline checkweigher selection guide
Dynamic Checkweigher SC2-8050L30SC2-8050L30 is a high-capacity inline dynamic checkweigher for up to 30 kg. It enables real-time weight inspection without slowing throughput, ensuring accuracy, consistency, and efficiency.
- Weighting range
- 0.05-30kg
- Weighting accuracy
- ±3-10g
- Belt speed
- 5-90m/min
Dynamic Roller Checkweigher SC3-10060L30Dynamic Roller Checkweigher SC3-10060L30 is an inline conveyor scale and full case checkweigher for large packages, ideal for checkweigher systems.
- Weighting range
- 1-30kg
- Weighting accuracy
- ±15-30g
- Belt speed
- 5-60m/min
End-of-line Checkweighers SC3-10060L50The SC3-10060L50 is a dynamic checkweigher machine and heavy automatic checkweigher designed for large items. It’s an end of line checkweigher with built-in rejector, from a trusted hi speed checkweigher co.
- Weighting range
- 0.05-50kg
- Weighting accuracy
- ±5-20g
- Belt speed
- 5-90m/min
High‑Speed Dynamic Weighing Scale SC3-L-12080S60The SC3-L-12080S60 is one of the best parcel weighing scales for large-item logistics. It’s ideal to weigh parcel, weigh out logistics, and handle bulky goods on logistics scales.
- Weighting range
- 1-60kg
- Weighting accuracy
- ±10-30g
- Belt speed
- 5-120m/min
Large Parcel Dynamic Weighing Scale SC3-LproSC3-Lpro is a checkweigher for large volume logistics. With a 2000×1500mm platform, it integrates advanced weighing systems for logistics with barcode scanning and dimensioning of oversized parcels and pallets.
Heavy Automatic Checkweigher SC3-10070L80The SC3-10070L80 is a heavy duty checkweigher with checkweigher roller conveyor, ideal for large items. This industrial dynamic checkweigher delivers hi-speed precision in tough environments.
- Weighting range
- 1-80kg
- Weighting accuracy
- ±10-30g
- Belt speed
- 5-90m/min
Multi-lane Checkweigher SCP6SCP6 is a dynamic checkweighing system for precision weighing of small packages. Ideal as a tablet checkweigher or stickpack checkweigher, it supports multi-lane control, fast data export, and GMP compliance.
- Weighing Range
- 0.1-100g
- Weighting accuracy
- ±0.02-0.05g
- weighing speed
- 40-50 cuts/minute
Dual Lane Checkweigher SCP2SCP2 is a dual lane checkweigher offering modular checkweighing and precision weighing. Ideal food checkweighers and checkweigher equipment for fast production lines.
Checkweigher for Small Packages SC1-C-3523L1SameGram CW-S-5040L5 High-Speed Dynamic Checkweigher, suitable for high-speed packaging.
- Weighting range
- 1-1000g
- Weighting accuracy
- ±0.02-0.1g
- weighing speed
- 1-35pieces/min
Hi Speed Dynamic Checkweigher SC1-5040L5SC1-5040L5 is an economy, hi speed, standard dynamic belt checkweigher ideal for in line dynamic weight checking with high precision and reliability.
- Weighting range
- 1-5000g
- Weighting accuracy
- ±05-3g
- Belt speed
- 5-90m/min
Hygienic Checkweigher SCF-4523L3SCF-4523L3 is a washdown checkweigher with precision checkweighing for food industry use. Built for wet environments, its hygienic design checkweighing system offers safety, flexibility, and seamless line integration.
- Weighting range
- 1-3000g
- Weighting accuracy
- ±0.3-2g
- Belt speed
- 5-90m/min
Can CheckweigherChain checkweigher designed for cans and bottles. This automatic checkweighers solution is a reliable online checkweigher machine and checkweighing system for bottling.
Light-Mid Weight Checkweigher for up to 15 kg SC2-8040L15SC2-8040L15 is an automatic weigh price label system with advanced data tracking and flexible speed control. Ideal for weigh price labeling and weighing labeling tasks in high-precision packaging lines.
- Weighting range
- 0.05-15kg
- Weighting accuracy
- ±3-10g
- Belt speed
- 5-90m/min
In-line Checkweigher SC-PR-4530L3SC-PR-4530L3 is a precision checkweigher for color box packaging lines. This dynamic checkweigher system for precision weighing installs directly on conveyors, requiring no layout changes or extra space.
- Weighting range
- 1-3000g
- Weighting accuracy
- ±0.5-2g
- Belt speed
- 5-40m/min
High-Precision Dynamic Weighing Scale for Small Parcel SC2-L-6055S5The SC2-L-6055S5 is a high-speed logistics scale for parcel weighing. Designed for fast, accurate weighing out logistics, it's ideal for modern scales for logistics industry needs.
- Weighting range
- 1-3000g
- Weighting accuracy
- ±1-5g
- Belt speed
- 5-120m/min
Multi-lane Checkweigher SCP6SCP6 is a dynamic checkweighing system for precision weighing of small packages. Ideal as a tablet checkweigher or stickpack checkweigher, it supports multi-lane control, fast data export, and GMP compliance.
- Weighting range
- 0.1-100g
- Weighting accuracy
- ±0.02-0.05g
- weighing speed
- 40-50 cuts/minute
- High‑Speed Dynamic Weighing Scale SC3-L-12080S60
The SC3-L-12080S60 is one of the best parcel weighing scales for large-item logistics. It’s ideal to weigh parcel, weigh out logistics, and handle bulky goods on logistics scales.
- Weighting range
- 1-60kg
- Weighting accuracy
- 10-30g
- Belt speed
- 5-120m/min
Large Parcel Dynamic Weighing Scale SC3-LproSC3-Lpro is a checkweigher for large volume logistics. With a 2000×1500mm platform, it integrates advanced weighing systems for logistics with barcode scanning and dimensioning of oversized parcels and pallets.
DualScale for Dynamic Parcel Weighing SC-L-8070L20The SC-L-8070L20 is a dynamic parcel weighing scale designed for fast, accurate parcel weigh. Ideal for logistics, it ensures precise weighing of parcels on single platforms.
High-Precision Dynamic Weighing Scale for Small Parcel SC2-L-6055S5The SC2-L-6055S5 is a high-speed logistics scale for parcel weighing. Designed for fast, accurate weighing out logistics, it's ideal for modern scales for logistics industry needs.
- Weighting range
- 1-5000g
- Weighting accuracy
- ±1-5g
- Belt speed
- 5-120m/min
Static Logistics Checkweigher SCP-LSCP-L is a static parcel weighing scale with integrated printing, ideal for warehouses needing fast, accurate parcel weigh solutions in mixed-product shipping lines.
High Accuracy Checkweigher SC1-H-3512L1SC1-H-3512L1 is a high accuracy, intelligent dynamic checkweigher designed for motion checkweighing in high speed checkweigher systems and inline use.
- Weighting range
- 1-1000g
- Weighting accuracy
- ±0.03-0.1g
- Belt speed
- 5-90m/min
Checkweigher for Small Packages SC1-C-3523L1SC1-C-3523L1 is the best checkweigher machine for small packages, ideal for cosmetic product checkweighing. This compact, automatic checkweigher offers precise weight control in small in-motion checkweighers setups.
- Weighting range
- 1-1000g
- Weighting accuracy
- ±0.02-0.1g
- weighing speed
- 1-35pieces/min
Multi-lane Checkweigher SCP6SCP6 is a dynamic checkweighing system for precision weighing of small packages. Ideal as a tablet checkweigher or stickpack checkweigher, it supports multi-lane control, fast data export, and GMP compliance.
- Weighing Range
- 0.1-100g
- Weighting accuracy
- ±0.02-0.05g
- weighing speed
- 40-50 cuts/minute
Dynamic Checkweighers for Ex Zones SC-EPSC-EP is a hi-speed checkweigher for Ex zones, offering customization dynamic checkweigher solutions with IP65 belt checkweighers from trusted scale supplier.
Can CheckweigherChain checkweigher designed for cans and bottles. This automatic checkweighers solution is a reliable online checkweigher machine and checkweighing system for bottling.
Hygienic Checkweigher SCF-4523L3SCF-4523L3 is a washdown checkweigher with precision checkweighing for food industry use. Built for wet environments, its hygienic design checkweighing system offers safety, flexibility, and seamless line integration.
- Weighting range
- 1-3000g
- Weighting accuracy
- ±0.3-2g
- Belt speed
- 5-90m/min
Checkweigher Product Comparison Guide
Light to Medium-weight Checkweigher
| Model | Weighing range | Weighing Accuracy | Weighing speed | Shell Material | Application | Features | |
|---|---|---|---|---|---|---|---|
 | SCF-4523L3 | 1-3000g | ±0.3-2g | 5-90m/min | 304 stainless steel | Hygiene-critical applications: food, pharma, supplements, cosmetics | Food grade, extremely hygienic |
 | SC1-H-3512L1 | 1-1000g | ±0.03-0.1g | 5-90m/min | 304 stainless steel | Pharmaceuticals, Food & Beverage, Personal Care & Cosmetics, and other high-precision small-package applications | High precision, small range |
 | SCP2-3516L02 | 1-200g | ±0.1-±0.3g | 20-60m/min | 304 stainless steel | Pharmaceuticals, Confectionery, Personal Care & Cosmetics, and Bakery for high-precision small-package checkweighing | Two weighing platforms offer higher throughput，Customizable 3 columns |
 | SCP6 | 0.1-100g | ±0.02-0.05g | 40-50 cuts/minute | 304 stainless steel | Pharmaceuticals, Food & Packed Products, and Personal Care & Cosmetics for stick packs and small pouch checkweighing | Vertical six-row design for small strip-shaped packages; up to 12 rows customizable |
 | SC1-C-3523L1 | 1-1000g | ±0.02-0.1g | 1-35pieces/min | 304 stainless steel | Pharmaceuticals, Personal Care & Cosmetics, Confectionery & Snacks, and Small Metal/Plastic/Electronic Components for high-precision forward & reverse checkweighing | Forward & reverse rotation for cost-effective diversion of small packaged products |
 | SC1-5040L5 | 1-5000g | ±05-3g | 5-90m/min | 304 stainless steel | Printed Materials (books, postcards, cards, envelopes) with missing/extra page detection | High speed, with photoelectric sensing. |
 | SC-C | 1-3000g | ±0.5-±2g | 5-90m/min | 304 stainless steel | Bottled Products — including condiments, beverages, bottled cosmetics (lotions, serums, nail polish), pharmaceuticals, and health supplements | Equipped with bottle holder, designed for bottled products |
Heavy-duty Checkweigher
| Model | Weighing range | Weighing Accuracy | Weighing speed | Shell Material | Application | Features | |
|---|---|---|---|---|---|---|---|
 | SC2-8040L15 | 0.05-15kg | ±3-10g | 5-90m/min | 304 stainless steel | Logistics, warehousing, food processing, manufacturing and other operations handling medium-weight cartons and boxed goods (up to ~15 kg) | For medium-weight (≤15 kg), large-size products |
 | SC3-10060L50 | 0.05-50kg | ±5-20g | 5-90m/min | Carbon steel spary painting | Warehousing & Logistics, Food & Beverage (dry goods, grains, seafood, meat), and other packaged products requiring shipment weight control | Large platform, easy for big/heavy items；Front console, convenient operation |
 | SC3-8050L30 | 0.05-30kg | ±3-10g | 5-90m/min | 304 stainless steel | Large-package checkweighing for Pharmaceuticals, Cosmetics, Dairy, Bakery & Confectionery, Chemicals, and Logistics | Compact platform, space-saving；Rear console, ideal for High density/heavy items |
 | SC3-10070L80 | 1-80kg | ±10-30g | 5-90m/min | Carbon steel spray painting | Home Appliances, Hardware & Tools, Industrial Equipment, Automotive Parts, Electronics, Furniture, Chemicals, and Packaged Food & Beverages | For large and heavy bagged or boxed products across industries |
 | SC3-10060L30 | 1-30kg | ±15-30g | 5-60m/min | 304 stainless steel | Dairy, Eggs, Dry Goods & Grains, Packaged Food & Beverages, Electronics & Toys, and Warehousing/Logistics，for cartons, bags, boxes, and bulk packages | Roller platform — economical, durable, ideal for heavy packaged products |
Scales Used for Logistic
| Model | Weighing range | Weighing Accuracy | Weighing speed | Shell Material | Application | Features | |
|---|---|---|---|---|---|---|---|
 | SC3-L-12080S60 | 1-60kg | 10-30g | 5-120m/min | Carbon steel spray painting | Parcel Sorting Centers, E-commerce Warehouses, Courier & Express Hubs, and 3PL/Cross-Border Logistics，for dynamic weighing of parcels, polybags, envelopes, and cartons | High-speed logistics scales have a wide range of applications. |
 | SC2-L-6055S5 | 1-5000g | ±1-5g | 5-120m/min | 304 stainless steel | E‑commerce, parcel sorting, courier & express, 3PL, and warehousing — handling parcels, polybags, envelopes, and cartons | High-speed for light packages |
 | SC-L-8070L20 | 1-20kg | ±3-10g | 5-120m/min | Carbon steel spray painting | E‑commerce, parcel sorting, courier/express, 3PL and warehousing for small to medium parcels and cartons | Two platforms — designed for higher throughput |
 | SCP-L | Custom-made | Depends | Manual | Carbon steel spray painting | E‑commerce fulfillment, warehouse outbound checks, courier pickup stations, and sorting/distribution centers for parcels, polybags, envelopes and cartons | Static scales for manual weighing and labeling — highly flexible |
 | SC3-Lpro | Custom-made | Depends | Depends | Carbon steel spray painting | Logistics hubs, customs/bonded warehouses, e-commerce fulfillment centers, and distribution operations handling oversized parcels, pallets and heavy freight | Extra-large, custom-built for customs weighing |
Find the Right Checkweigher for Your Line
Why Choose SameGram?
Simply leave your contact information to get the practical selection information compiled by the SameGram technical team.
- Over 15 years of weighing technology expertise
- Made in China engineering
- Proven installations worldwide
Our Support
SameGram One-Stop Service
Customized solutions
Tailor-made checkweigher systems adaptable to various product weights and production lines, optimized for accuracy and speed.
Installation, commissioning, and diagnosis
Online commissioning and system fine-tuning to guarantee peak weighing performance without onsite visits.
Professional certification and technical support
Technical expert support, including remote calibration assistance, ensures compliance with product safety and industry standards.
Training and equipment maintenance
Technical training focuses on teaching the weighing system, accuracy adjustment, data processing, and troubleshooting common problems to ensure uninterrupted production.
Industries Applicable To Checkweighers

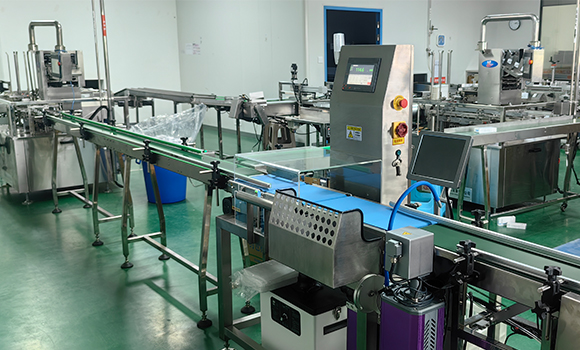

Pharmaceuticals and health products
Tablet & capsule inspection
Blister packs
Cartons & vials
Liquid medicine
Benefits: Full traceability, regulatory compliance (GMP)

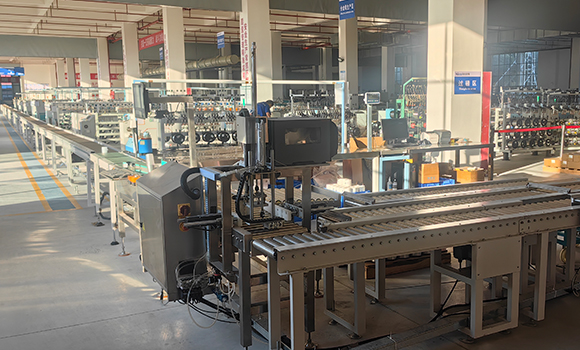

Food & Beverage Checkweighers
Bakery products
Meat & poultry
Frozen foods
Snacks & confectionery
Benefits: Reduced giveaway, hygiene‑compliant wash‑down design
Cosmetics & Consumer Goods
Bottled serum
Tube ointment
Multi-pack essential oils
Face mask packaging
Benefits: Ensure product compliance, consistency, and safety
Checkweigher Application Cases
SameGram customized an automated weighing system with real-time printing and labeling for a pre-processed food plant in Belarus. This system meets multiple needs, including high-precision weighing, automatic printing of labels on both sides, automatic labeling, and water-washable operation. The equipment operates stably, helping the client save 60% on labor costs and significantly improving automation levels.
- Industry:
- Food Processing
- Equipment:
- Weighing and Four-Printing Head Labeling Machine
- Country:
- Belarus
faq
Frequently Asked Questions
- Q: What is a dynamic checkweigher?Dynamic weighing ensures 100% inline inspection.A:Dynamic checkweigher automatically weighs products while moving on a conveyor, without stopping production.
- Q: What information is required for a custom checkweigher order?Learn what key details you need to provide—like product size, weight range, speed, and layout—to request a custom checkweigher or inspection system from SameGram. Fill out the online form for tailored solutions.
A:
To help us design the most suitable weighing or inspection solution for your needs, please provide the following:· Product dimensions· Weight range· Production speed· Production line layoutFor a faster and more accurate recommendation, we encourage you to fill out our Product Selection Form here: - Q: What standard weighing solutions does SameGram offer?SameGram provides industry-specific checkweighing and inspection solutions tailored to sectors like food, pharmaceuticals, daily chemicals, logistics, and electronics.
A:
SameGram offers checkweighing and inspection solutions for industries such as food, pharmaceuticals, daily chemicals, logistics, and electronics.
- Q: Are you a manufacturer or a trading company?SameGram is a professional manufacturer specializing in the design, production, and sales of automated weighing and inspection equipment. With in-house R&D and manufacturing capabilities, we provide high-quality customized solutions to meet various industrial needs.
A:
We are a specialized manufacturer of automated weighing and inspection equipment, founded in 2016, with over 15 years of industry experience, ISO9001 and CE certified.
- Q: What should I do if the machine malfunctions?SameGram offers reliable support for equipment malfunctions, including remote diagnostics, spare parts shipping, and on-site repair services to minimize downtime.
A:
If a malfunction occurs, SameGram provides comprehensive after-sales support including remote diagnostics, spare parts delivery, and on-site troubleshooting and repair by our engineers.
- Q: What is the weighing accuracy of SameGram machines?SameGram checkweighers provide high-precision weighing, with accuracy ranging from ±0.02 g to ±10 g, depending on model and load — ensuring reliable performance for both light and heavy products.
A:
SameGram checkweighers offer high-precision performance with weighing accuracy ranging from ±0.02 g to ±10 g, depending on the model and product weight. For example, our SC1-C-3523L1 model delivers up to ±0.02 g precision for small items, while heavy-duty mo±3–10 g accuracy for loads up to 30 kg.
Dynamic Checkweigher Technical Guide
Ultimate Dynamic Checkweigher Guide: Operation, Maintenance & Tips
Checkweigher Systems Guide: Real-Time Printing & Labeling IntegrationDiscover how checkweigher systems with integrated real-time printing and labeling boost efficiency and compliance in food production. Learn from SameGram's expert solutions.More
How Dynamic Checkweighers Boost Efficiency in Fruit Processing PlantsDiscover how dynamic checkweighers enhance fruit processing efficiency, reduce waste, and ensure compliance. Explore SameGram's high-precision solutions for optimal production.More

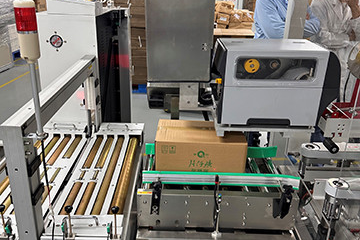

Checkweigher & Labeler Guide: Installation & MaintenanceDiscover essential tips for installing and maintaining checkweighers and weigh price labellers to ensure precision, compliance, and efficiency in your production line.More
