Heavy-Duty Automatic Checkweigher up to 80 kg SC3-10070L80

SC3-10070L80 is a heavy duty checkweigher ideal for large items up to 80 kg. This machine is also known as roller checkweigher.

Categories	Checkweigher
Trademark/Brand	SameGram
Model	SC3-10070L80
Weighting range	1-80kg
Belt speed	5-90m/min
Weighting accuracy	±10-30g
Weighting section size	L 1000mm*W 700mm
Applicable product size	L≤700mm; W≤700mm
Rejection mode	Customized
Download
Update Time	Nov 20,2025

Contact Now

Detail Information

Heavy-Duty Automatic Checkweigher up to 80 kg SC3-10070L80

Introduction

The SC3-10070L80 is a heavy-duty automatic checkweigher designed for large cartons, crates, and objects up to 80 kg. Constructed from 304 stainless steel with IP65 protection, it integrates seamlessly with automated assembly lines, filling machines, and vertical packaging systems.

Equipped with a robust checkweigher roller system and checkweigher conveyor, it ensures smooth and stable transport of heavy products while maintaining hi-speed checkweighing accuracy under high-throughput conditions. The rugged frame withstands harsh industrial environments, making this roller checkweigher ideal for end-of-line inspection in logistics, warehousing, and manufacturing operations.

Compact yet powerful, the SC3-10070L80 offers reliable weight control, reduces product loss, and improves production efficiency, providing a versatile solution for demanding industrial packaging lines.

Heavy-Duty Automatic Checkweigher up to 80 kg SC3-10070L80

Features

80kg Weighing Capacity

Accurately inspects heavy cases and oversized parcels, supporting industrial production lines with demanding load limits.

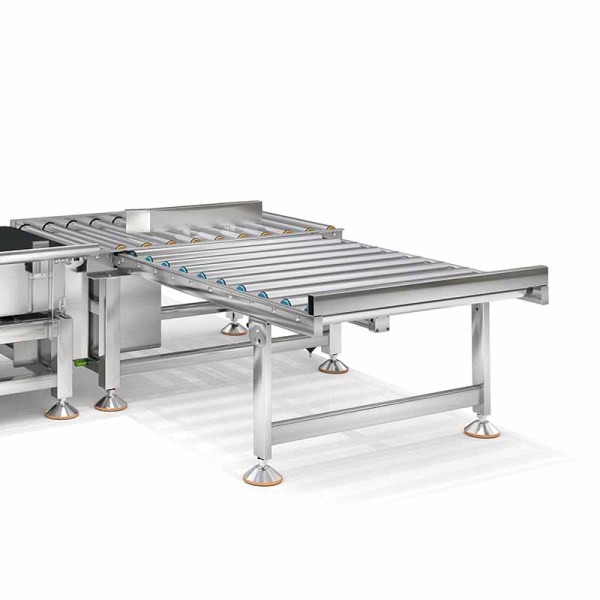

Roller Conveyor Integration

Infeed and outfeed use powered rollers, improving flow efficiency for rigid boxes and reducing manual handling effort.

Precision Belt Weighing Zone

Weighing section uses a high-precision belt system, minimizing movement disturbance and improving weight detection consistency.

Built for End-of-Line Control

An ideal choice for final weight checks before palletizing or shipping, especially in high-throughput distribution centers.

Robust & Service-Friendly Design

Industrial-grade construction ensures long-term reliability, while open-frame access simplifies daily maintenance.

Advanced Interface & Smart Alerts

User-centric touchscreen with multi-language support, recipe storage, and customizable alerts for real-time quality monitoring.

Heavy-Duty Automatic Checkweigher up to 80 kg SC3-10070L80

Technical Parameters

Product model	SC3-10070L80
Weighting range	1-80kg
Weighting section size	L 1000mm*W 700mm
Belt speed	5-90m/min
Air pressure interface	Φ8mm
Case material	Carbon steel spray painting
Conveying direction	Facing the machine, left in and right out
Display division	1g
Weighting accuracy	±10-30g
Applicable product size	L≤700mm; W≤700mm
Storage formula	100 types

power supply	AC220V±10%
Air source	0.5-0.8MPa
Data transmission	USB data export
Alarm mode	Sound and light alarm and automatic rejection
Rejection mode	Push rod type, swing wheel type, jacking transplanting are optional
Optional function	Inline printing, intelligent code detection and sorting, on-demand inkjet marking, real-time barcode reading, and automated label application.
Operation screen	7-inch Kunluntong color touch screen
Control system	Samegram online weighing control system V1.0.5
Other configurations	Mean Well power supply, Jingyan motor, stainless steel roller, AVIC electrical sensor

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.

File Downloads

For more product related parameter files, please contact us.

Checkweigher Product Specification Sheet—SC3-10070L80（1.57 MB）

Heavy-Duty Automatic Checkweigher up to 80 kg Applications

Enameled wires

Monitors spool weight in real time to detect breakage, incomplete winding, or overlength issues—ensuring process stability and material yield in precision wire manufacturing.

Carton

Verifies total weight of sealed cartons to confirm inclusion of all packed items, reducing the risk of missing components before shipment in bulk packaging operations.

Pharmaceuticals

Ensures exact dosage and content consistency in blister packs or bottles by identifying underfilled units before final packaging—supporting compliance and patient safety.
