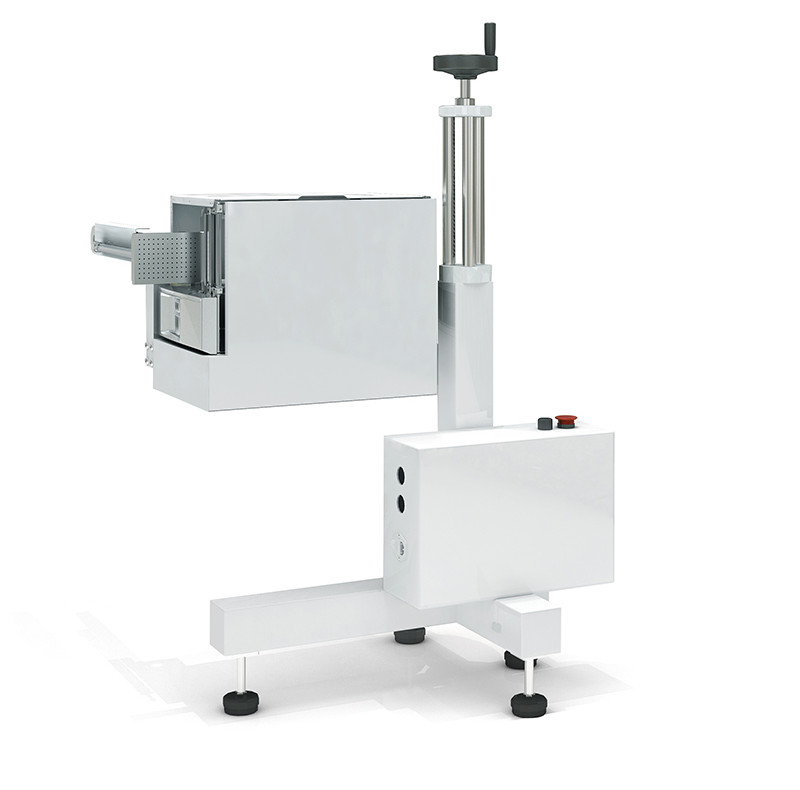

Automatic Labeler SL

SL is an automatic labeling machine supports fast, precise labeling. Ideal automatic labeling machine for box dynamic labeling

Categories	Labeler
Brand	SamaGarm
Model	SL
Labeling accuracy	±2-20mm
Labeling part	Flat top, optional sides
Resolution	203/300/600dpi
Labeling type	Push type
Labeling speed	20-40p/min
Printing speed	305mm/s(203dpi) 254mm/s(300dpi)
Download
Update Time	Aug 4,2025

Contact Now

Detail Information

Automatic Labeler SL

Introduction

The SL Automatic Label Applicator is a compact and efficient automatic labeling machine designed for various packaging needs. As a reliable automatic label machine, it delivers precise and consistent labeling. It functions as an automatic labeling machine for bottles, and also serves as an automatic box labeling machine. The system supports both round and flat surfaces, making it ideal for diverse industries. This versatile unit meets demands for automatic labeling machines and is also compatible as an automatic labelling machine for bottles in food, beverage, and pharma production lines.

Automatic Labeler SL

Features

High-Speed Stability

Designed for rapid and continuous labeling

operations, significantly boosting production line efficiency. (

User-Friendly Operation

Intuitive touchscreen interface simplifies

setup, product changeovers, and daily operation for operators.

Batch Data Traceability

Capable of printing variable data like batch

codes and expiry dates, enhancing product traceability.

Intelligent communication

Standard RS232/RS485 and Ethernet ports; compatible with ERP and MES systems.

Low Maintenance Requirement

Optimized design with fewer

moving parts reduces the need for frequent servicing, maximizing uptime.

Robust Durability

Constructed with high-quality materials for longterm reliability and performance in demanding industrial environments.

Automatic Labeller SL

Technical Parameters

Product model	SL
Labeling accuracy	±2-20mm
Printer	Zebra, TSC, Honeywell optional
Labeling part	Flat top, optional sides
Resolution	203/300/600dpi
Ribbon width	25.4~107mm；thickness0.06~0.3mm
Overall dimensions	800×670×1600mm（Customizable）

Label width	20-140mm
Label length	20-200mm
Labeling type	Push type
Labeling speed	20-40p/min
Print width	16-104mm
Paper ejection method	Left/right
Print length	20-990mm
Printing speed	305mm/s(203dpi) 254mm/s(300dpi)

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
