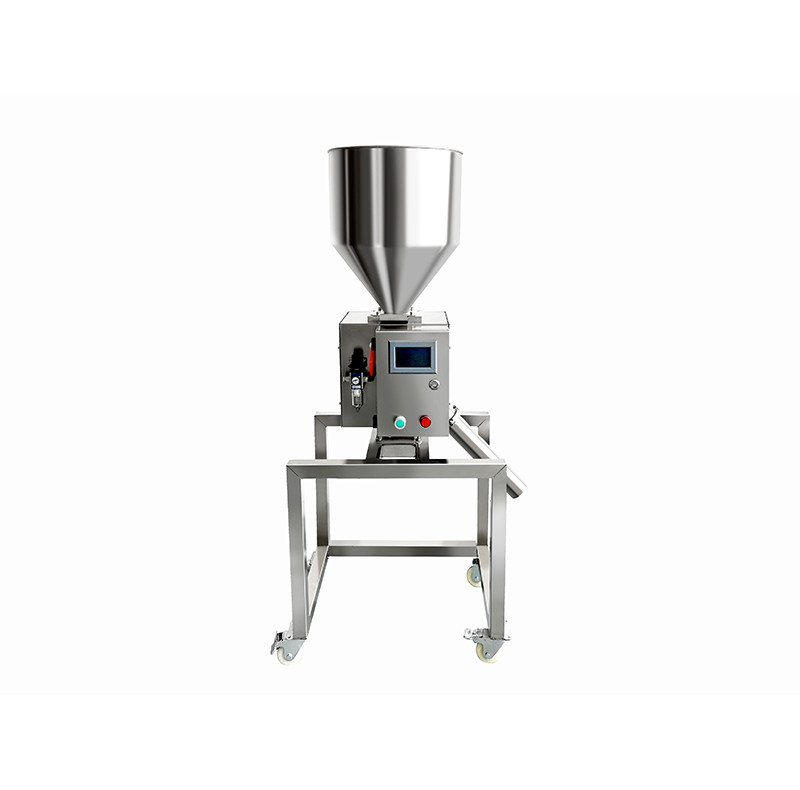

Gravity Fall Metal Separator HC-700

HC-700 gravity fall metal separator offer precise,hygienic and sealed metal removal for food and pharma use.

Categories	Metal Detector
Brand	SamaGarm
Model	HC-700
Feeding method	Free-fall detection of raw materials
Temperature Environment	-8 to 80 degrees
Part in contact with raw materials	Nylon, stainless steel, aluminum
Processing volume	700-800kg/hr
Compressed air	3~6bar, 8mmΦ
Gas consumption	0.4 liters per separation action
Download
Update Time	Aug 4,2025

Contact Now

Detail Information

Gravity Fall Metal Detector HC-700

Introduction

The Gravity Fall Metal Detector is designed for the inspection and removal of all metal contaminants—including ferrous, non-ferrous, and stainless steel—during the processing of powders and granules. This free-fall metal separator ensures safe and clean product flow by detecting and separating even the tiniest metal particles. As a trusted China gravity fall metal detector, it helps reduce downtime, avoid costly recalls, and improve production efficiency. Our gravity free fall metal detector complies with international food safety standards and is widely used in industries requiring high detection precision. A reliable free fall metal detector and metal separator for protecting downstream equipment and consumer safety.

Gravity Fall Metal Detector HC-700 Features

Hygienic Design

Full 304 stainless steel construction meets stringent food and pharmaceutical hygiene standards.

Superior Precision and Stability of multi-lane checkweigher

Sealed Channel

Fully enclosed detection tunnel to prevent dust contamination during processing.

the multihead checkweigher conform to GMP-Compliant Design

High Sensitivity

Detects and separates ferrous, non-ferrous, and stainless steel contaminants with precision.

Customizable Checkweigher Up to 20 Lanes

Easy Integration

Modular design for seamless integration into existing gravity-fed lines.

The multi-lane checkweighers is Compact and Modular Construction

Compliance Ready

Conforms to IFS, HACCP, and other global quality certification standards.

The multi lane checkweigher has Massive Data Storage and Traceability

Automatic Ejection

Fast-reaction reject system ensures safe and efficient contaminant removal without halting production.

Gravity Fall Metal Detector HC-700

Technical Parameters

Product model	HC-700
Feeding method	Free-fall detection of raw materials
Temperature Environment	-8 to 80 degrees
Machine shell	SUS304
Detect material temperature	≤80 degrees
Part in contact with raw materials	Nylon, stainless steel, aluminum
Compressed air	3~6bar, 8mmΦ
Total power	10W

Power cord	3m
Gas consumption	0.4 liters per separation action
Detection accuracy	The volume of the metal particles is 0.4mm in diameter and can be adjusted according to actual conditions.
Body Metal Separator Dimensions（Except racks and hoppers）	323245363（mm）
Reaction time	0.3 to 5s, the longer the time, the more waste will be discharged
Processing volume	700-800kg/hr

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
