Metal Detector Sensitivity Limits: What Spec Sheets Hide
1. Introduction: The Gap Between Lab Certification and Line Reality
It is 4:00 PM on a Friday. Your quality assurance team has just finished running standard calibration checks across your packaging line. The test pieces—1.0 mm Ferrous, 1.2 mm Non-Ferrous, and 1.5 mm Stainless Steel 316 spheres—passed cleanly through the aperture, triggering the pneumatics every single time. The HACCP audit log registers 100% compliance.
Yet, three weeks later, a key distribution partner flags a batch: an ultra-thin stainless steel cutting wire snippet, measuring less than 0.4 mm in diameter, was discovered inside a sealed bag.
How does a fully calibrated industrial inspection system, operating within its stated specification sheet parameters, miss a foreign object that seems large enough to see with the naked eye?
This uncomfortable scenario is far more common in high-speed manufacturing than equipment spec sheets suggest. Plant managers and QA directors frequently fall into the trap of treating a metal detector’s "spherical sensitivity" as an absolute guarantee of real-world contaminant interception. In reality, an equipment datasheet reflects optimal, laboratory-grade performance under zero-noise conditions.
On an active conveyor belt, electromagnetic inspection is governed by the unyielding laws of physics. Understanding the gap between ideal lab sensitivity and actual line interception rate is the first step toward building a truly audit-ready, zero-defect packaging line.
2. The "Test Sphere" Paradox: Why Geometry Masks Real-World Hazards
To understand why real contaminants slip past inspection, one must first look at how sensitivity is measured across the industry. Equipment manufacturers quantify performance using precision-ground test spheres made of Ferrous (Fe), Non-Ferrous (Non-Fe, typically Brass), and Stainless Steel (SS 316).
Spheres are chosen as the universal calibration benchmark for a simple reason: geometry. A sphere presents an identical electromagnetic cross-section regardless of its orientation, velocity, or angle of approach through the detection coil. It represents a perfectly symmetrical disturbance in the high-frequency magnetic field.
However, industrial contaminants in processing environments rarely enter the line as convenient round beads. They appear as:
● Wire strands from wire-mesh conveyor belts
● Flakes from worn processing blades
● Slag or metal shavings from upstream maintenance
● Broken needles or processing pins
The Orientation Effect
When a non-spherical object—such as a piece of fine wire—passes through an active magnetic field, its detectability drops dramatically depending on its orientation relative to the field lines. This phenomenon is known as the Orientation Effect.
[Direction of Field Lines]
↓ ↓ ↓ ↓
======================== ← Wire Parallel to Field Lines
(Minimal Cutting of Magnetic Flux → WEAK SIGNAL)
↓ ↓ ↓ ↓
| | ← Wire Perpendicular to Field Lines
| | (Maximum Cutting of Magnetic Flux → STRONG SIGNAL)
========================
If a 0.4 mm diameter stainless steel wire passes through the aperture perpendicular to the magnetic field, it cuts across a large density of magnetic flux lines, generating a strong eddy current that triggers the alarm. However, if that exact same 0.4 mm wire passes through parallel to the field lines, its effective magnetic cross-section is reduced solely to its 0.4 mm end profile.
To the detector coil, a 20 mm long wire traveling in a parallel orientation generates a signal no larger than a 0.4 mm sphere—well below the physical threshold of a machine calibrated to detect 1.5 mm SS 316 spheres. This physical reality explains why a line can pass every spherical test piece while remaining vulnerable to thin metal slivers.

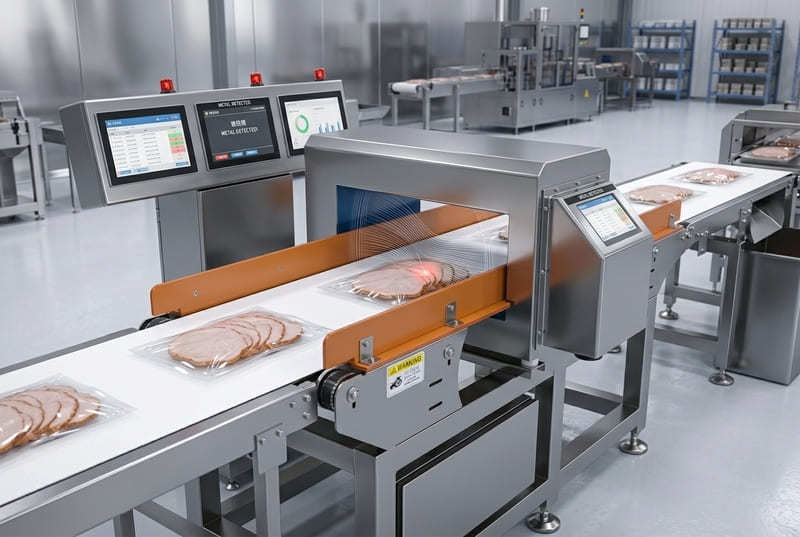

For operations seeking to bridge this gap, selecting robust conveyor metal detectors engineered with advanced digital signal processing is essential to extracting maximum signal clarity from weak orientation profiles.
3. The 3 Hard Physical Constraints in Industrial Metal Detection
Beyond contaminant geometry, three fundamental physical constraints dictate the limits of inline metal inspection. Ignoring these variables during equipment selection inevitably leads to false rejects, missed contaminants, or costly line downtime.
