Gravity Fall Metal Detector - Bulk Food Inspection

In modern industrial food manufacturing, maintaining absolute product purity is both a regulatory mandate and a cornerstone of brand protection. Among the various stages of production, handling dry bulk materials—such as pulverized powders, flours, starches, spices, and granular ingredients—presents distinct processing hazards. Foreign body contamination, particularly from microscopic metal fragments, can originate from upstream farming equipment, wear-and-tear of milling machinery, loose transport bolts, or processing screens.

To mitigate these risks before packaging or downstream processing, installing a high-performance Gravity Fall Metal Detector is the industry-standard preventative control. By intercepting material in a free-falling stream, these specialized inspection systems isolate magnetic and non-magnetic metal contaminants with extreme precision without disrupting continuous bulk workflows.

The Critical Role of Metal Detection in Powder and Granular Food Production

Dry bulk food matrices behave uniquely compared to packaged liquids or solid goods. Powders can clump, create massive dust clouds, build static charges, and vary significantly in moisture content. These physical attributes can cause a phenomenon known as "product effect" in traditional inspection lines, where the food product itself mimics a metallic signal, leading to false rejects and operational downtime.

An Advanced Free-Fall Metal Detector eliminates these issues by analyzing the material while it is completely unconfined and falling under the influence of gravity. This method yields several operational advantages for powder and granular production lines:

1. Early-Stage Detection (Pre-Packaging): Finding a metal contaminant while the product is still in bulk form prevents the waste of expensive packaging material and avoids contaminating an entire finished batch.

2. Downstream Equipment Protection: Hard metal fragments can easily destroy sensitive downstream machinery, such as high-speed rotary valves, form-fill-seal (FFS) packaging jaws, and injection molding dies. Implementing a bulk material metal separator upstream shields your capital investments from mechanical failures.

3. HACCP and FSMA Compliance: Food safety certifications require rigorous Critical Control Points (CCPs). A continuous gravity-fed inspection system serves as an un-bypasable checkpoint, validating that your facility complies with local and international food purity codes.

Step-by-Step Workflow: How a Gravity Feed Metal Detector Operates

The processing sequence inside a highly engineered Gravity Fall Metal Detector must be instantaneous, precise, and completely automated. The entire inspection-to-rejection loop occurs within milliseconds through five critical phases:

Phase 1: Gravity Product Feeding

Bulk material enters vertically through an upper inlet hopper. The system relies on a controlled free fall, ensuring that the velocity of the product remains uniform as it passes through the sensing field.

Phase 2: High-Frequency Metal Detection

The heart of the system is an ultra-sensitive anti-interference search probe. This multi-frequency sensor creates an electromagnetic field within the throat of the pipe. When a piece of material passes through, any metal particle—whether ferrous, non-ferrous, or non-magnetic stainless steel—distorts this electromagnetic field.

Phase 3: Real-Time Data Processing

The analog signal generated by the field distortion is instantly transmitted to an onboard digital signal processor (DSP). The microprocessor evaluates the phase angle and signal amplitude, distinguishing genuine metal hazards from ambient plant vibration or the natural "product effect" of dry ingredients.

Phase 4: Automated Rejection of Non-Compliant Products

If the signal crosses the pre-set safety threshold, an ultra-fast automatic reject system is instantly activated. A pneumatic diverter valve or quick-acting flap shifts positions in a fraction of a second (adjustable between 0.3 to 5 seconds), redirecting the contaminated portion of the material stream away from the main line into a secure reject bin.

Phase 5: Downstream Output Delivery

Once the contaminated material is isolated, the reject valve snaps back to its default position. The clean, validated bulk material falls unhindered into the downstream processing line, entering mixers, extruders, or high-speed packaging equipment.

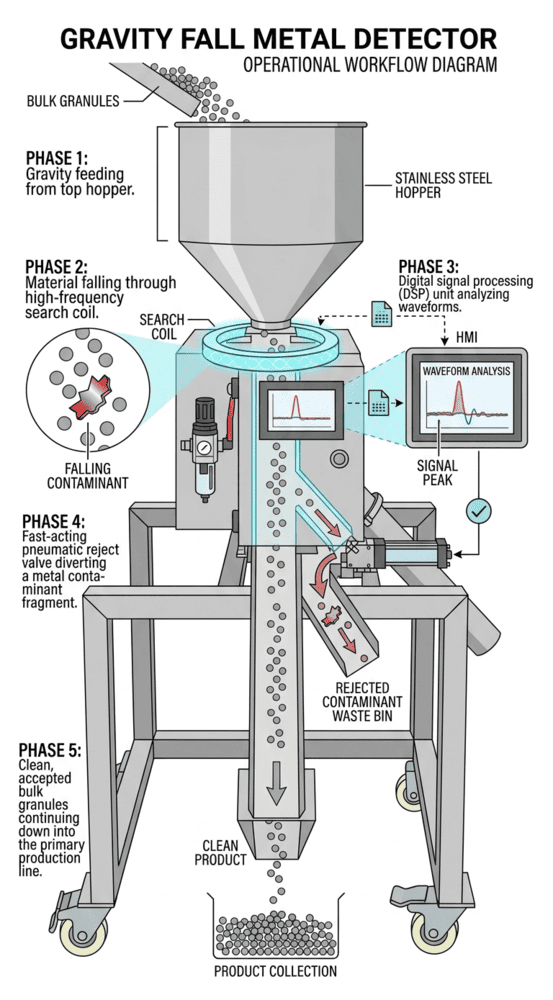

Workflow of a Gravity Feed Metal Detector

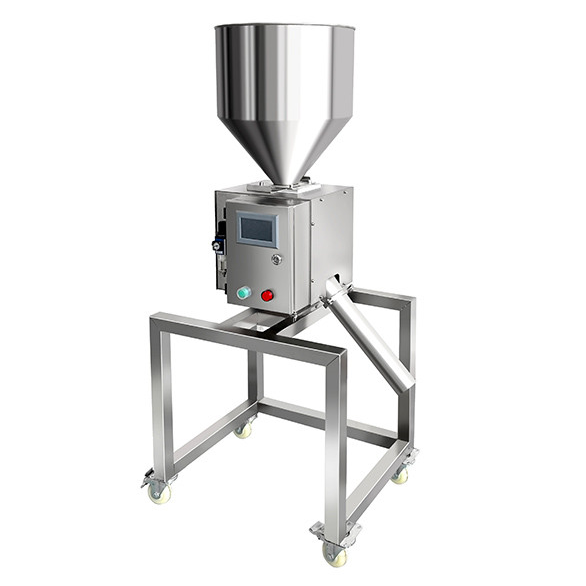

Engineering Excellence: SameGram HC-700 Gravity Fall Metal Detector Series

As an industry leader in automated weight sorting and industrial product inspection, SameGram engineered the HC-700 Gravity Fall Metal Detector Series specifically to meet the high-throughput requirements of modern food facilities. Fabricated from rugged, food-grade SUS304 or SUS316L stainless steel, these units combine extreme physical stability with cutting-edge signal analytics.

Key Technical Innovations of the HC-700 Series:

● Ultra-Sensitive Anti-Interference Probe: The HC-700 features an enclosed probe assembly that shields the internal sensor from factory EMI (electromagnetic interference). It delivers a remarkable 0.3mm all-metal detection capability (including ferrous and tricky stainless steel contaminants) with real-time signal strength visualization directly on the main interface.

● Rapid 5-Second Material Adaptation: Changing recipes from a highly conductive spice blend to a neutral grain usually requires extensive recalibration. SameGram’s intelligent auto-learn software can adapt to entirely new raw materials within 5 seconds, storing up to 200 independent product parameter profiles for immediate recall.

● Industrial-Grade LCD Human-Machine Interface (HMI): Built to withstand punishing factory floors, the control module relies on reliable, sealed physical buttons paired with an intuitive LCD screen. It stores up to 1,500 historical detection logs for effortless quality audits.

● 5-Level Secure Permission Management: To maintain strict compliance with global food standards, configuration changes can only be made by authorized personnel. The software supports a hierarchical 5-level user access structure, preventing unauthorized or accidental calibration overrides.

● Modular Mechanical Flexibility: The system can be easily integrated into a pre-existing multi-tier production tower or deployed independently via its standard structural support bracket and heavy-duty feeding hopper. It easily connects to auxiliary systems like automatic vacuum loaders or mechanical screw feeders.

Detailed Technical Specifications: SameGram HC-700 Series

Choosing the correct equipment configuration depends directly on your required pipe diameter and hourly throughput targets. Below is the official technical breakdown for the SameGram HC-700 lineup, allowing engineers to size systems precisely to their bulk processing demands.

Product Model	Cutting Diameter	Material Throughput	Voltage / Frequency	Compressed Air	Operating Temperature	Reject Duration	Cutting Speed	FE Sensitivity	SUS Sensitivity
HC-700-25	Φ 25 mm	250 KG / Hr	220V, 50/60Hz	3 Bar ~ 6 Bar	-10°C to +80°C	0.3 ~ 5 Sec (Adj.)	Free Fall	0.1 ~ 0.2 mm	0.2 mm
HC-700-30	Φ 30 mm	300 ~ 400 KG / Hr						0.2 ~ 0.3 mm	0.3 ~ 0.4 mm
HC-700-50	Φ 50 mm	700 ~ 800 KG / Hr						0.3 mm	0.5 ~ 0.6 mm
HC-700-70	Φ 70 mm	1000 ~ 1500 KG / Hr						0.5 mm	0.8 ~ 1.0 mm
HC-700-100	Φ 100 mm	3000 ~ 5000 KG / Hr						0.8 mm	0.8 ~ 1.0 mm

*Note: Maximum operational speeds and actual detection thresholds are dependent on the unique physical characteristics of the dry bulk product being inspected, as well as the ambient plant installation environment. For specialized material handling considerations, please consult SameGram’s engineering team directly.

Overcoming Practical Food Inspection Challenges with Smart Technology

Implementing an Industrial Food Metal Detector involves navigating real-world processing complexities. Fine food powders and granular matrices present unique challenges that can disrupt inferior inspection equipment. The SameGram HC-700 series uses purpose-built design features to overcome these common operational bottlenecks:

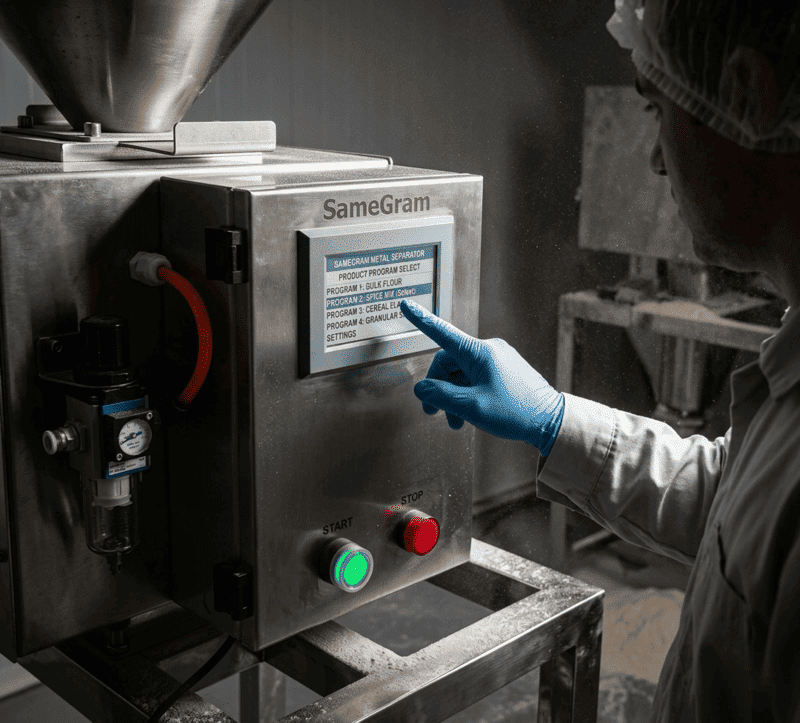

Samegram Metal Separator Machine Operating in a High-Dust Food Production Environment

1. Eliminating Static Charge Interference

Dry friction among falling particles—especially inside plastic or composite drop tubes—frequently generates massive electrostatic charges. This static can distort standard electromagnetic fields, triggering false reject sequences. SameGram resolves this by integrating specialized, non-conductive, anti-static product insert tubes inside the inspection coil throat, insulating the system from electrostatic drift.

2. Managing Dense Dust Environments

Fine powders like flour and sugar create highly volatile, dust-heavy microclimates inside factory floors. If fine dust migrates into electronic enclosures, it can cause component overheating or short circuits. The HC-700 boasts a robustly sealed, industrial-grade IP-rated enclosure that completely seals out fine particulate dust, ensuring flawless execution during continuous shift cycles.

3. Adapting to Flow Velocity Variations

Depending on whether product feeds from a loss-in-weight feeder, a rotary valve, or a simple tipping hopper, free-fall drop speeds can vary. The HC-700's adjustable pneumatic rejection timing (0.3 to 5 seconds) allows quality control teams to fine-tune the exact duration the reject gate stays open. This ensures complete removal of contaminated material without discarding excessive amounts of good product.

Aligning Factory Workflows with Global Food Safety Protocols

Integrating a SameGram gravity feed metal separator helps facilities effortlessly achieve compliance with major international food safety frameworks, including HACCP, BRCGS, IFS, and SQF.

Uncompromising Data Traceability

Modern quality audits demand a verifiable, tamper-proof operational history. The HC-700's onboard non-volatile memory automatically logs up to 1,500 distinct events, tracking testing intervals, calibration adjustments, and real-time rejection timestamps. This comprehensive data log can be easily pulled to prove continuous compliance to regulatory inspectors.

Seamless Line Integration

Whether your process relies on a vertical gravity setup, a horizontal Conveyor Metal Detector, or a complex multi-stage sorting network, SameGram provides a unified machinery ecosystem. Our automated inspection products integrate cleanly into your central factory SCADA networks or distributed PLC setups, giving production managers full control over line health from a central dashboard.

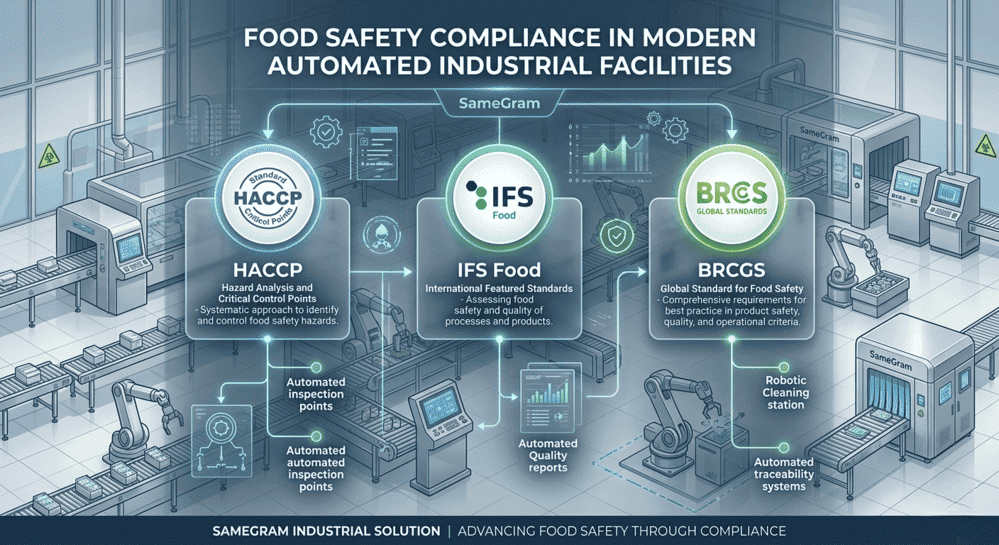

Samegram Industrial Facility-Gravity Fall Metal Detector

Partnering with SameGram: World-Class Industrial Quality Control

Investing in a bulk inspection line requires choosing an equipment manufacturer with proven engineering experience, manufacturing capacity, and responsive technical support.

At SameGram, we do more than manufacture machinery; we develop tailored industrial inspection solutions. Operating out of our state-of-the-art SameGram Manufacturing Plant, our engineering teams utilize precision machining and rigorous quality testing protocols to build systems that deliver decades of reliable service on demanding factory floors.

From initial line layout consultation to custom inlet/outlet customization, SameGram works closely with your engineering teams to seamlessly integrate our equipment into your unique production environment. We maintain a diverse portfolio of automated inspection systems, enabling us to support your facility with tailored Metal Detection Solutions or high-capacity online weight check systems.

Take Control of Your Production Line Purity

Do not wait for a product recall to upgrade your contamination controls. Safeguard your processing machinery, satisfy international audit standards, and preserve your brand's hard-earned market reputation with SameGram's industry-proven inspection technology.

● Explore our complete equipment catalog: SameGram Product Portfolio

● Learn more about our engineering standards: About SameGram

● Connect with an automation specialist today: Contact SameGram
