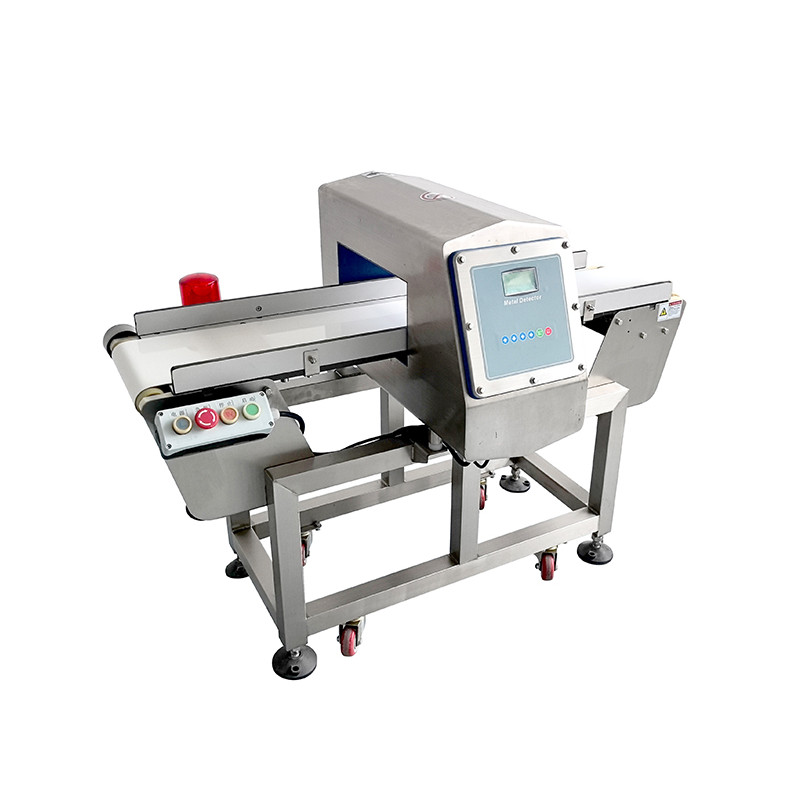

High Precision Conveyor Metal Detector DD-390 Series

Customizable metal detector for conveyor belt with dual frequency, high sensitivity, and strong anti-interference.

Categories	Metal Detector
Brand	SamaGarm
Model	DD-390 Series
Sensitivity (empty belt surface)	FE(Φ0.8mm),NON-FE(Φ1.2mm),SUS316(1.5Φmm)
Production speed	1~1000m/min,fixed speed 25/min
Effective detection channel(mm)	400 ×120 (W×H) customizable
Conveyor belt material	Food grade PU belt
Structure	SUS304，Comply with HACCP, GMP, FDA, CAS and other
Protection	IP 66 (probe) Others are IP54, optional
Download
Update Time	Aug 4,2025

Contact Now

Detail Information

High Precision Conveyor Metal Detector DD-390 Series

Introduction

The High Precision Conveyor Metal Detector DD-390 Series is a high-performance solution engineered for precision and versatility in demanding production lines. Built with advanced digital technology and imported components, it offers superior sensitivity and stability. With customizable frequencies, intelligent learning, and memory functions, it effectively eliminates product effect interference—ideal for high-moisture, high-salt, or oily items. This metal detector for food processing supports a wide range of applications with adjustable speed (1–1000 m/min) and modular design. Compatible with various reject systems, it's the trusted choice for metal detector conveyor solutions in the food industry.

High Precision Conveyor Metal Detector DD-390 Series

Features

High Speed Weight Sorter Crafted from 304 stainless steel with IP65 protection.

Dual Frequency Detection

Adapts to different product types with intelligent frequency switching for greater precision.

High Speed Weight Sorter Supports 6 to 20 sorting levels for tailored classification.

Smart Product Learning

AI-based self-learning technology identifies and memorizes product characteristics to reduce false alarms.

High Speed Weight Sorter with Advanced catchweighers function automates grading.

High-Speed Compatibility

Supports conveyor speeds from 1–1000 m/min, suitable for modern high-output food lines.

High Speed Weight Sorter with High Efficiency for Fish Processing

Digital Core with Imported Chips

Ensures high detection sensitivity, excellent stability, and resistance to external interference.

High Speed Weight Sorter with Smart User Access Control

Modular & Customizable Design

Flexible system allows easy cleaning, part replacement, and optional rejectors (air, pusher, flap).

High Speed Weight Sorter with User-friendly weight sorter machine interface.

Hygienic All-Stainless Construction

Built with full stainless steel, offering IP-grade dustproof and waterproof protection for food-grade use.

High Precision Conveyor Metal Detector DD-390 Series

Technical Parameters

Product model	DD-390 (4012)
External dimensions	1350×802×950(L×W×H) customizable
Effective detection channel	W 400 mm*H 120 mm
Belt width	350mm
Sensitivity (empty belt surface)	FE(Φ0.8mm),NON-FE(Φ1.2mm),SUS316(1.5Φmm)
Production speed	1~1000m/min,fixed speed 25/min
Operation indication method	Flat touch buttons
Frame height	700±50
Conveyor belt material	Food grade PU belt
Structure	SUS304，Comply with HACCP, GMP, FDA, CAS and other standards
Protection	IP 66 (probe) Others are IP54, optional

Relative humidity	20 - 80%, non-condensing
Power supply	AC220V±10%, single phase, grounded; 47 Hz to 65 Hz, 100 W (max)
Operating temperature	Ambient temperature -10° to 40°C (14° to 104°F)； Product temperature in well -10° to 55°C (14° to 131°F)。
Language	English, Spanish, French, German, Italian, Chinese, Czech, Russian, Polish, Thai, Korean, Brazilian, Portuguese
Output type	6 relay outputs; Relays: 250 volt AC 2 amp (max); 50 volt DC 1 amp (max)
Output allocation	Reject 1, Reject 2, Fault, Alarm, Warning, QA Light

* The detection sensitivity is the detection sensitivity obtained by placing the detection card in the center of the conveyor belt and passing through the detection channel.
* The actual detection sensitivity will vary depending on the product being tested or the conditions of use.
