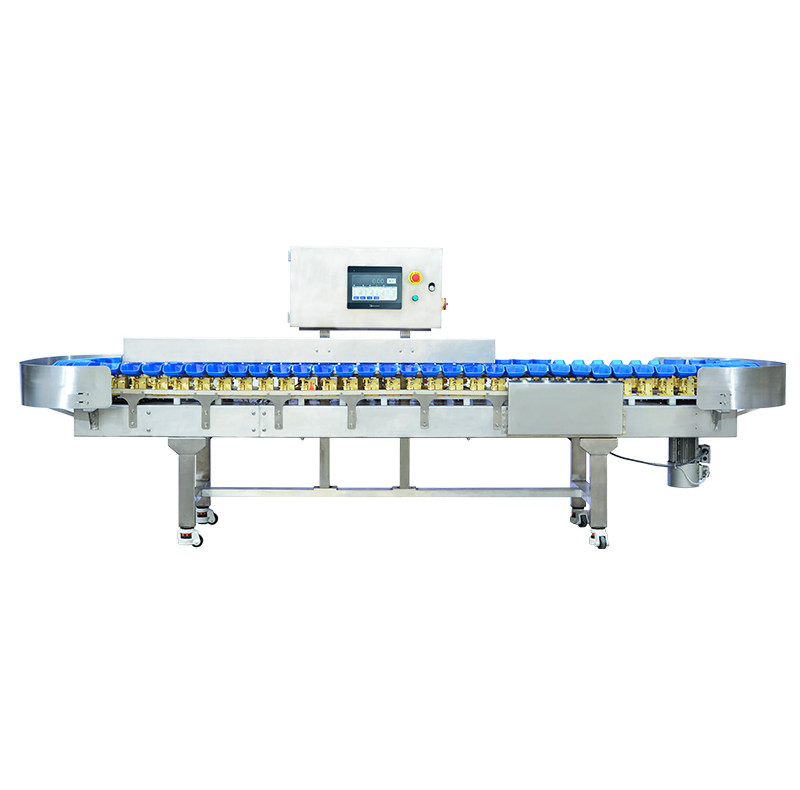

High Speed Weight Sorter SWSR-750TC6

SWSR-750TC6 is a stainless steel weight sorting machine designed for food use,very suitable for fish ,seafood and poulty

Categories	Weight Sorter
Brand	SamaGarm
Model	SWSR-750TC6
Weighting range	1-2000g
Sorting speed	1-300m/min
Weighting accuracy	±0.3-2g
Tray size	145×70×50mm
Applicable product size	L≤100mm; W≤65mm
Sorting port number	6-20 grades customizable
Download
Update Time	Aug 4,2025

Contact Now

Detail Information

High Speed Weight Sorter SWSR-750TC6

Introduction

The SWSR-750TC6 is a food-grade weight sorting machine built with 304 stainless steel and IP65 waterproof protection. Designed as a fish weight sorting machine or general weight sorter machine, it features multi-level automatic catchweighers functionality for high-throughput grading. With 6 to 20 customizable grading levels, it replaces manual sorting while improving speed and accuracy. The system includes a password-protected, three-tier user access interface for enhanced operational control. Whether you need a weight checking sorter for seafood or a scalable solution for other food products, the SWSR-750TC6 delivers clean, fast, and intelligent weight classification.

High Speed Weight Sorter SWSR-750TC6

Features

Food-Grade Stainless Steel Build

Crafted from 304 stainless steel with IP65 protection.

Withstands moisture, corrosion, and harsh washdown environments.

Customizable Grading Levels

Supports 6 to 20 sorting levels for tailored classification.

Flexible design adapts to various product weight ranges.

Automatic Multi-Level Sorting

Advanced catchweighers function automates grading.

Greatly reduces manual labor and sorting errors.

High Efficiency for Fish Processing

Ideal as a fish weight sorting machine in seafood plants.

Boosts speed and consistency in sorting operations.

Smart User Access Control

Three-tier permission system with customizable passwords.

Protects system settings and enhances operational safety.

Intuitive Touchscreen Interface

User-friendly weight sorter machine interface.

Supports real-time monitoring and fast setup for all levels.

High Speed Weight Sorter SWSR-750TC6

Technical Parameters

Product model	SWSR-750TC6
Weighting range	1-2000g
Tray size	145×70×50mm
Sorting speed	1-300m/min
Air pressure interface	304 stainless steel
Case material	304 stainless steel
Display division	0.1g
Weighting accuracy	±0.3-2g
Applicable product size	L≤100mm; W≤65mm
Storage formula	100 types

Power supply	AC220V±10%
Air source	0.5-0.8MPa
Data transmission	USB data export
Sorting port number	6-20 grades customizable
Sorting method	Tipping bucket sorting
Operation screen	10-inch Weiluntong color touch screen
Control system	Samegram online weighing control system V1.0.5
Other configurations	Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
