Pivot Wheel Parcel Sorter: High-Speed Sorting System | SameGram
Authoritative Definition
In modern automated material handling and logistical infrastructure, a Pivot Wheel Parcel Sorter represents a state-of-the-art, multi-directional sortation mechanism engineered to divert mid-to-high volume cartoned goods, parcels, and shipping totes into specific destination lanes. Unlike traditional rigid line-shaft diverters, an industrial Pivot Wheel Parcel Sorter utilizes matrices of driven inline wheels that independently pivot to precise angles, altering the linear trajectory of an incoming item without stopping the main conveyor line.
When systematically paired with a high-capacity High-Speed Dynamic Weighing Scale, this configuration transforms into an automated weight-classification matrix. This integrated system calculates the exact physical mass of an item on the move, passing telemetry data downstream to execute real-time, multi-tier weight sortation. For global brands seeking to transition to Industry 4.0 paradigms, this synergy eliminates manual handling bottlenecks, optimizes parcel logistics, and provides a continuous flow of real-time production metrics.
Working Principle and Production Line Integration
The operational workflow of the SameGram integrated sorting system follows a structured, high-speed sequence designed for continuous, non-stop material processing:
1. Parcel Induction: Items are loaded onto the intake conveyor belt. The system maintains consistent spacing between parcels to ensure distinct electronic tracking.
2. Dynamic Weighing Process: As the package glides over the weighing platform of the SameGram SC3-L-12080S60 High-Speed Dynamic Weighing Scale, high-precision load cells capture thousands of weight samples within milliseconds. The package is weighed seamlessly while in motion, completely eliminating the need for traditional stop-and-go scaling methods.
3. Data Analysis & Classification: The captured weight profile is processed by SameGram’s intelligent control module. The software instantaneously compares the package's weight against pre-configured classification thresholds or distribution rules defined in the Warehouse Control System (WCS).
4. Precision Diverting: Once the weight tier is determined, a digital trigger is sent to the Pivot Wheel Parcel Sorter. The individual steering wheels pivot smoothly to the designated discharge angle (typically 30° or 45°), guiding the parcel into the correct sorting chute based on its precise weight category.
Integrating a specialized Pivot Wheel Parcel Sorter directly into an automated production line provides immense operational advantages and unmatched convenience. Traditional sorting setups often require extensive floor space and complex pneumatic overhead pushers that can shock fragile goods or cause packaging deformation. SameGram’s integrated approach minimizes footprint requirements through a modular inline design.
Because the dynamic checkweigher and the Pivot Wheel Parcel Sorter share a synchronized, low-latency communication protocol, installation is straightforward and virtually plug-and-play. This close integration allows factory floors and warehouse hubs to automate complex weight verification steps—such as identifying underweight packages, sorting products into specific weight grades, or filtering heavy cartoned items—with zero manual intervention. The fluid motion reduces mechanical stress, yielding lower lifecycle maintenance costs and maximum system uptime.

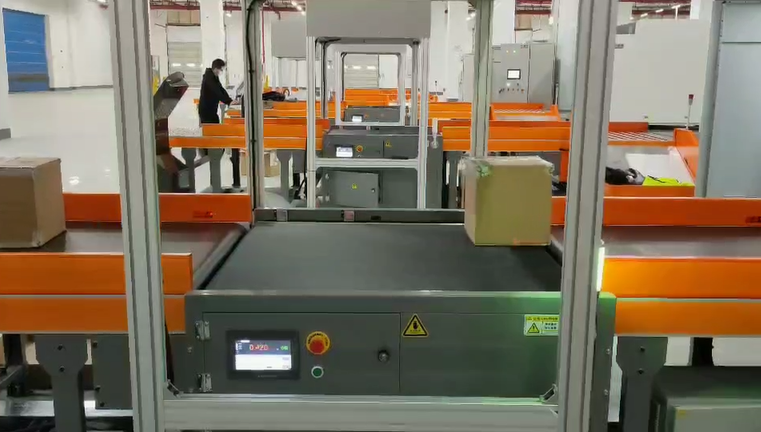

This video demonstrates the official SameGram integrated system test, highlighting how the dynamic checkweigher and the Pivot Wheel Parcel Sorter work in perfect synchronization to distribute parcels to different channels based on real-time weight classification.
Technical Parameter Range
To assist process engineers in assessing system compatibility with their existing infrastructure, SameGram provides a highly resilient and scalable operational range for its specialized weight-sorting configurations:
● Dynamic Weighing Range: 1 kg up to a maximum capacity of 60 kg, catering to diverse parcel sizes and industrial carton weights.
● Conveyor Platform Dimensions: A generous 1200 mm length by 800 mm width (optimized for handling wide-ranging product profiles from small e-commerce mailers to bulky shipping crates).
● System Throughput Speed: Capable of dynamically processing and sorting between 5-120m/min, heavily dependent on average parcel lengths and spacing configurations.
● Weighing Accuracy Threshold: Achieves precise operational tolerances ranging from ±10 grams to ±30 grams under continuous high-speed movement.
● Divert Angle Capabilities: Adjustable bidirectional steering angles of 30° and 45° to match varying warehouse layouts.
● Control Architecture: Built on robust industrial PLC systems with comprehensive Ethernet/IP, Modbus TCP, and Profinet connectivity options for direct integration into higher-level ERP platforms.
Diversified Application Scenarios
The utility of the SameGram integrated weight-sorting system spans across multiple fast-paced industrial applications:
● E-Commerce Logistics & Fulfillment Centers: Large-scale distribution hubs leverage the Pivot Wheel Parcel Sorter to group outbound packages into exact weight classes. This ensures that freight cost calculations are automated, protecting logistics providers from unexpected carrier surcharges and streamlining bulk shipping operations.
● Manufacturing & Kitting Lines: Industrial production facilities utilize this setup to verify the completeness of kit boxes or final master cartons. If a box is missing an internal component, the dynamic scale detects the mass variance instantly, and the pivot wheel module diverts the defective product to a quality-control lane without halting the main line.
● Food Processing & Agricultural Logistics: Sorting bulk agricultural crates or packaged food crates into weight-defined batches allows processing plants to maintain consistent batching and uniform wholesale pricing.
For organizations looking to deploy these sorting technologies within specific agricultural sectors, explore our specialized overview on Vegetable Production Line Automation Solutions or visit our Comprehensive Industrial Automation Applications page to review custom setups tailored for high-capacity environments.
Industry Standards and Regulatory Compliance
Operating a high-throughput dynamic checkweigher and sortation platform requires strict compliance with international metrology and safety frameworks. SameGram designs and manufactures all automated machinery to strictly align with the OIML R51:2006 international standard for automatic catchweighing instruments. This compliance guarantees that our dynamic weighing data remains accurate and legally binding for trade, weight verification, and shipping tariff calculations.
Furthermore, our manufacturing facilities operate under stringent quality controls, fully conforming to CE Mark directives for electrical safety and mechanical integrity, alongside ISO 9001 quality management protocols. Adhering to these rigorous standards ensures that our international clients receive equipment that is safe, legally compliant, and built to withstand grueling, continuous multi-shift operations.
