Detect Missing Components Fast: SameGram Dynamic Checkweigher
If a Product on the Production Line is Missing a Component, How Can We Quickly Inspect It?
In modern high-speed manufacturing, a single missing component—be it a missing leaflet in a medicine box, or a missing cap on a bottle—can lead to costly recalls, regulatory fines, and irreparable damage to brand reputation. Manual inspection is no longer a viable option for lines running hundreds of units per minute. So, how can we quickly and accurately inspect products for missing components? The answer lies in the integration of a Dynamic Checkweigher.
At SameGram, we specialize in providing high-precision weighing solutions that act as the final "gatekeeper" of your production quality. By detecting weight deviations as small as a fraction of a gram, our systems ensure that every product leaving your facility is complete and compliant.
1. Authoritative Definition: What is a Dynamic Checkweigher?

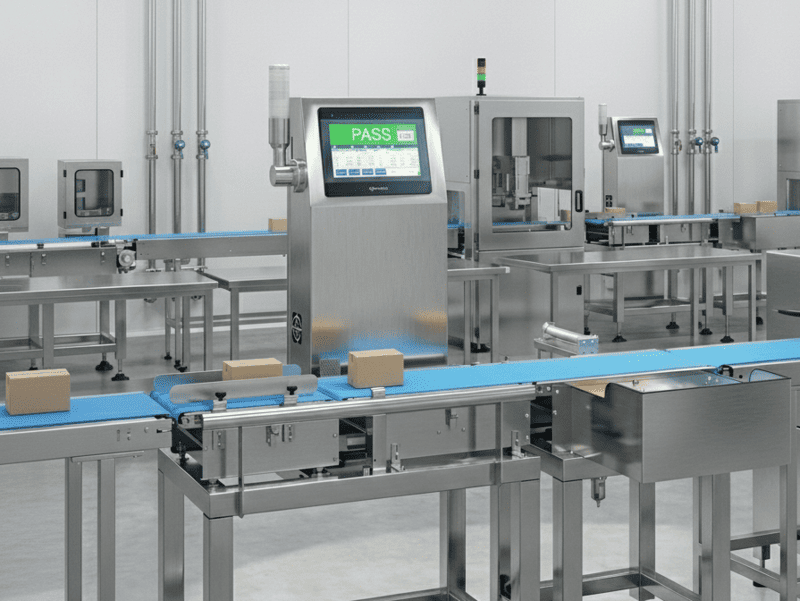

A Checkweigher is an automated system used in production lines to verify the weight of individual products while they are in motion. Unlike static scales that require a product to stop, a dynamic checkweigher measures the weight as the item passes over a specialized weighing conveyor.
For industries such as food, pharmaceuticals, and cosmetics, a checkweigher is not just a scale; it is a critical Quality Control (QC) instrument. It is designed to ensure that the final product meets design specifications and legal weight requirements. If a product is missing a component (underweight) or has an extra one (overweight), the system triggers an automatic rejection mechanism to remove the non-conforming item from the line without stopping production.
2. How It Works: The Science of High-Speed Inspection
The process of detecting a missing component through weight is a masterpiece of sensor technology and signal processing. Here is how a SameGram system operates:
1. In-feed Synchronization: Products are spaced out by an in-feed conveyor to ensure only one item is on the weighing platform at a time.
2. Dynamic Weighing: As the product crosses the weighing belt, a high-precision load cell (we use industry-leading sensors) captures the downward force.
3. Signal Processing: Our advanced PLC (Programmable Logic Controller) filters out "noise" from floor vibrations and mechanical movement to calculate the "true weight" in milliseconds.
4. Decision & Rejection: The system compares the weight against a pre-set target. If the weight is outside the allowed tolerance—indicating a missing component—the SameGram system activates a rejector.
Special Feature: The Air-Jet Rejector
As seen in our featured application video, for lightweight products like canned medicines or small bottles, we utilize a high-speed "Air-Jet" system. This mechanism uses a precise blast of compressed air to "blow" the faulty product into a collection bin, ensuring the rest of the line continues at full speed without physical contact that could damage fragile packaging.
3. Technical Parameters: Performance at a Glance
To achieve 100% inspection, the hardware must be robust. Below are the standard technical specifications of the SameGram Checkweigher series:
| Parameter | Specification Range | ||
Weighing Range | 1g – 5,000g (Customizable up to 60kg) | ||
Highest Accuracy | ±0.03g – ±0.1g | ||
Inspection Speed | 5 – 90 meters/minute | ||
Material | SUS304 Stainless Steel (Food Grade) | ||
| HMI Display | 10-inch or 15-inch Color Touch Screen | ||
| Memory | Stores up to 100 unique product formulas | ||
| Data Export | USB port for Excel/Data logging | ||
Note: These parameters are based on our standard SCP series. For specific heavy-load requirements, please visit our Product List.
4. Application Scenarios: Where Precision Matters Most
Missing component detection is vital across various sectors where SameGram solutions are widely implemented:
● Pharmaceuticals: Detecting a missing instruction leaflet or a single missing tablet within a blister pack. High-precision weighing is the only non-destructive way to verify these internal components.
● Food & Beverage: Ensuring that canned foods contain the correct net weight and that multi-pack snack boxes aren't missing a single sachet. This ensures compliance with global food safety and labeling laws.
● Personal Care: Checking for missing caps on shampoo bottles or ensuring cosmetic gift sets are complete with all included accessories.
● Hardware & Logistics: Verifying that a box of furniture screws contains the exact count needed for assembly.
5. Industry Standards and Regulations: Why You Can’t Skip It
In the global market, "estimated weight" is no longer enough. Manufacturers must comply with strict regulations:
1. GMP (Good Manufacturing Practice): Especially in pharma, every step must be validated. SameGram checkweighers are designed with a smooth, easy-to-clean SUS304 frame that meets GMP hygiene standards.
2. OIML & Weights & Measures: To sell products internationally, you must prove that your labels are accurate. Our systems provide the data logs necessary for these audits.
3. HACCP/IFS/BRC: Food safety certifications require rigorous CCP (Critical Control Point) monitoring. A checkweigher is often the most reliable CCP for weight-based quality.

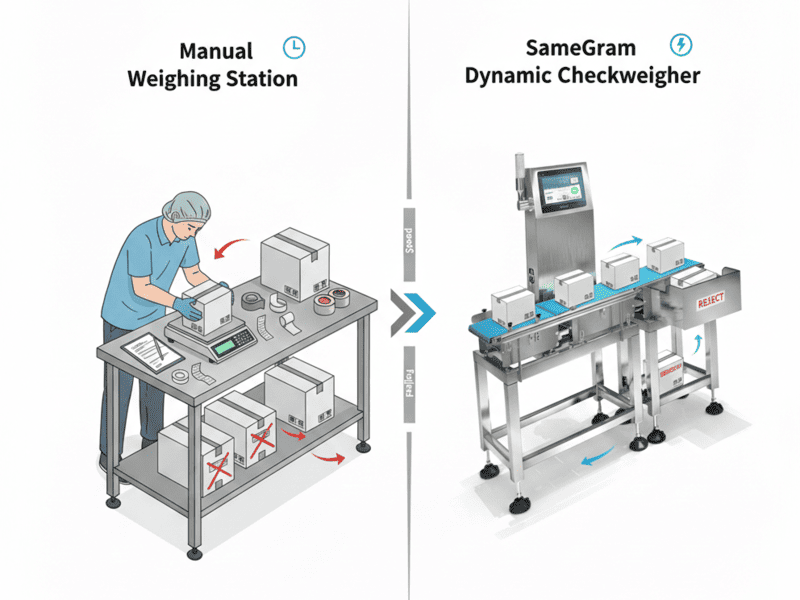

6. Common Misconceptions: Static vs. Dynamic Weighing
Many factory owners ask: "Why can't I just use a regular bench scale at the end of the line?"
● The Speed Gap: Static weighing requires an operator to stop the line, place the item, wait for the scale to settle, and record it. This creates a bottleneck. SameGram dynamic systems integrate directly into your automated production line, checking every single item without slowing down.
● Human Error: Manual sampling only checks perhaps 1% of your production. A checkweigher offers 100% inspection. If product #4,502 is missing a component, our system catches it, whereas a human inspector might miss it during a break.
7. FAQ: Frequently Asked Questions
Q: Can a checkweigher detect a missing paper manual inside a heavy box?
A: Yes. If the manual weighs 5g and the system accuracy is set to ±1g, the SameGram checkweigher will easily identify the missing weight and trigger the rejector.
Q: Does the system work for wet or wash-down environments?
A: Absolutely. We offer IP65 and higher protection ratings, using stainless steel construction that withstands the rigorous cleaning protocols required in meat and dairy processing.
Q: How long does it take to switch between different products?
A: With our user-friendly HMI, you can switch formulas in seconds. Simply select the pre-saved product name, and the system automatically adjusts its tolerances.
8. Official Statement: Why Choose SameGram?
At SameGram, we are more than just an equipment manufacturer; we are your partners in quality assurance. Based in our state-of-the-art Manufacturing Facility, our team of engineers combines years of experience in automation to deliver systems that are both robust and intelligent.
Our Dynamic Checkweigher Systems are engineered for "plug-and-play" integration. Whether you are upgrading an existing line or building a new smart factory, our solutions offer the reliability you need to protect your customers and your bottom line.
