Executive Summary
If you're searching for "what is X-ray inspection equipment," you've landed in the right place. X-ray inspection systems are advanced non-destructive testing tools that use penetrating radiation to reveal hidden contaminants, defects, or structural issues inside products without damaging them. Based on the principle of varying material densities absorbing X-rays differently, these X-ray inspection systems generate detailed images to ensure quality control in industries like food processing, pharmaceuticals, and manufacturing.
As a seasoned automation line electrical engineer with over 15 years in designing and optimizing production systems, I've seen firsthand how proper implementation of X-ray technology can slash defect rates by up to 95% and boost throughput. This guide draws from real-world applications, including my work integrating these systems into high-speed lines, to provide actionable insights for engineers, operators, and managers. We'll cover everything from basic physics to troubleshooting, with a focus on practical solutions that address common pain points like false positives or radiation safety concerns.
At SameGram, we specialize in X-ray inspection solutions tailored for food safety and industrial quality assurance. Our x-ray inspection systems, like the CSS series, incorporate self-learning algorithms that adapt to your specific products, ensuring reliable detection of contaminants as small as 0.3mm. If you're ready to elevate your production line, explore our customizable options at SameGram or contact us for a free consultation.
Chapter 1 - Fundamentals of Industrial X-Ray Inspection Technology
1.1 Working Principles of industrial X-ray inspection systems
X-ray inspection works by emitting low-energy X-rays through a product, where denser materials like metal or glass absorb more radiation, creating contrast in the resulting image. This is governed by the Beer-Lambert law: I = I₀ × e^(-μx), where I is the transmitted intensity, I₀ is the initial intensity, μ is the absorption coefficient, and x is the material thickness. In practice, this means a thin aluminum foil might require 40kV, while thicker products like bulk nuts could need 55-65kV for optimal penetration.
From our experience troubleshooting lines, voltage settings are critical—too low, and images are underexposed; too high, and you risk overexposure or unnecessary radiation. Our SameGram food X-ray inspection equipment automatically adjust tube voltage based on product thickness, drawing from real-time data to maintain consistency.
1.2 Core System Components
A typical X ray food inspection system includes:
● X-ray Tube/Generator: Produces beams at adjustable voltages (e.g., 40-65kV in our XSS Series for food applications).
● Collimator: Focuses the beam to minimize scatter.
● Detection Systems: Linear diode arrays capture images at high speeds, with integration times matched to conveyor speeds (e.g., 4000mm/min default in our units).
● Image Processing Unit: Uses algorithms like morphology (Lv1), brightness/darkness (Lv2), and gradient detection (Lv3) to identify anomalies.
● Sample Manipulation Platform: Conveyor with adjustable speed and direction for single-piece or bulk flow.
In SameGram's packaging-class multi-purpose detectors, components are shielded with thick steel plates to ensure safety, and self-learning features allow the food X-ray inspection equipment to mask non-contaminants like desiccants automatically after 8 learning cycles.
Chapter 2 - Industrial Applications & System Types
2.1 Manufacturing Sector Applications

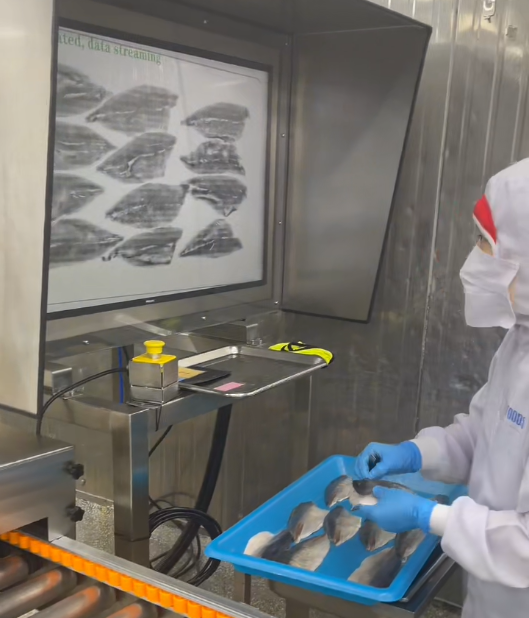

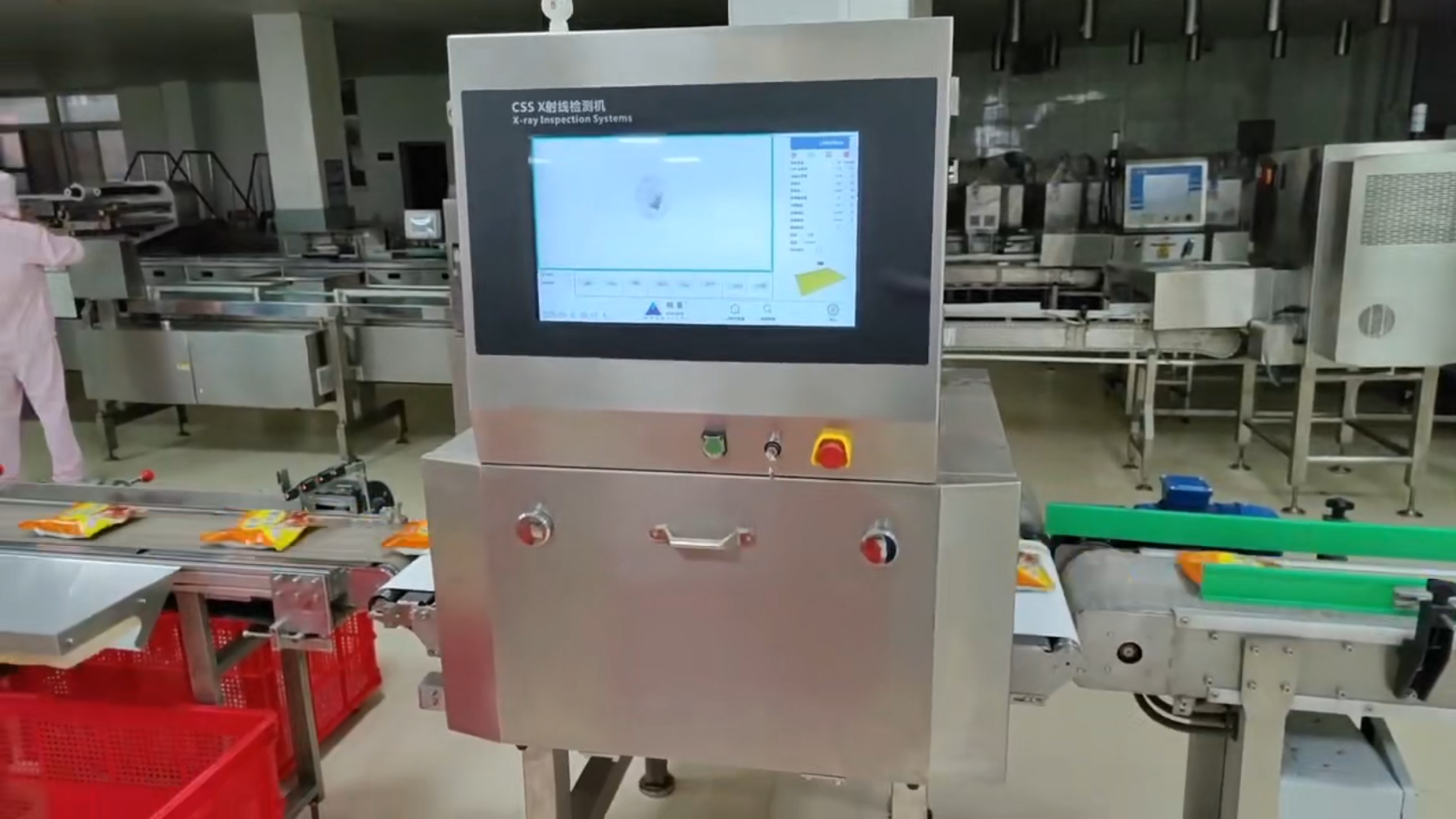

In food production, these food X-ray inspection equipment detect metals, glass, stones, bones, or high-density plastics in packaged or bulk items. For instance, our high-speed bulk foreign object X ray inspection for food industry and color sorter integrated machine handles scattered materials like nuts, identifying defects in real-time with flap rejection mechanisms.
Pharmaceuticals benefit from package integrity checks, while automotive uses include weld verification. One client I worked with reduced contaminant recalls by 80% after integrating our intelligent high-definition X ray food inspection detector, which supports multi-channel modes for stacked products.
2.2 System Configuration Types
● Offline vs. Inline: Inline for continuous production (e.g., our CSS series supports up to 1000 product profiles).
● 2D vs. 3D CT: 2D for speed in food lines; 3D for detailed defect analysis.
● Real-time vs. Batch: Real-time with AI for immediate rejection.
Choose based on throughput—our units of X ray inspection for food industry excel in high-volume scenarios, processing images with 42500 stretch coefficients for clear visuals.
Chapter 3 - Pre-Operation Technical Checklist
Before powering up, run these checks to avoid downtime—I've seen unchecked grounding cause 30% of startup failures.
3.1 Power & Safety Verification
● Grounding integrity (<1Ω resistance).
● Emergency stop functionality (front-mounted button in our designs).
● Radiation leakage (<1 μSv/hour).
● Voltage stability (±10% tolerance).
3.2 Mechanical System Inspection
● Conveyor tension and alignment (max 20mm deviation/10min).
● Lead curtain integrity (no gaps).
● Cooling fans operational.
3.3 Imaging System Calibration
● Warm-up after shutdown.
● Detector gain curve reading (view offsets with X-ray off/on).
● Phantom test using ASTM standards.
For SameGram industrial x-ray inspection systems, calibration auto-completes at 100% progress upon startup.
Chapter 4 - Operational Procedures & Best Practices
4.1 Standard Operating Procedure (SOP)
1. Power on via key switch; software auto-launches.
2. Select product from library (up to 1000 entries).
3. Calibrate: Adjust voltage (40kV for thin products), start self-learning if new.
4. Run: Monitor real-time display; system rejects via push rods or flaps (e.g., 200ms action duration).
5. Stop and report: View logs for total good/bad counts.
Optimize parameters like sensitivity levels (higher for stricter detection) to minimize false rejects.
4.2 Common Defect Signatures & Analysis
● Bridging: Irregular shapes in images.
● Voids: Low-density spots.
● Use our Lv1 algorithm for area-based shielding (min area threshold) to ignore benign features.
In operation, our self-learning masks items like aluminum clips after 8 passes, with adjustable shield grades (20-60 for varying shapes).
Chapter 5 - Troubleshooting & Maintenance Protocol
5.1 Electrical Fault Diagnosis
● No emission: Check tube filament; reset emergency stop.
● Fluctuations: Verify mA (auto-adjusted in our software).
5.2 Mechanical Maintenance Schedule
| Frequency | Task | Details | ||
Daily | Clean belts | Remove debris to prevent interference. | ||
| Weekly | Check temperatures | Detector/X-ray below 52°C to avoid alarms. | ||
| Monthly | Gain curve verification | Read and adapt offsets. | ||
| Annually | Full inspection | By certified techs. | ||
5.3 Image Quality Degradation Solutions
● Over-saturated: Disable enhancement or adjust stretch to 42500.
● No image: Check cut edges (for unilluminated detector ends) or clean channels.
If calibration fails, verify hardware connections (gray for normal in our interface).
Chapter 6 - Safety & Compliance Standards
6.1 Radiation Safety Protocols
Adhere to FDA and EU limits; our non-explosive designs use protective curtains—never insert body parts during operation. Personnel must use dosimeters; interlocks prevent access.
6.2 Environmental & Operational Safety
Install in stable, dry environments (-10°C to 40°C, <85% humidity). Wear proper PPE; delegate wiring to qualified electricians.
SameGram X ray food inspection systems meet global standards, with built-in emergency stops for quick shutdowns.
Chapter 7 - System Selection & ROI Analysis
7.1 Technical Specification Matrix
| Feature | SameGram CSS Series | |
Voltage | 40-65kV | |
| Speed | 4000mm/min | |
| Detection | 0.3mm contaminants | |
| Modes | 1-11 for bulk/single | |
7.2 ROI Calculation Framework
Calculate savings from reduced scraps (e.g., 20-30% fewer rejects). Payback in 18-36 months; our AI reduces false positives, adding value.
Chapter 8 - Integration & Data Management
8.1 Industry 4.0 Connectivity
Ethernet integration for MES/ERP; our software exports to Excel.
8.2 Traceability & Reporting
Archive images in dated folders; view historical logs (e.g., 3-day temperature curves).
Chapter 9 - Training & Certification Requirements
9.1 Operator Competency Matrix
● Level 1: Basic ops (8 hours).
● Level 2: Parameters (16 hours, admin login: username "admin", password "123").
● Level 3: Advanced (40+ hours).
Energy-efficient algorithms extend tube life; predictive maintenance models.
Ready to implement? Visit the SameGram Homepage for demos or email sale@samegram.com. As your partner in food safety AI expertise, SameGram delivers reliable, innovative solutions backed by our high-tech certifications and patents. Let's discuss how we can safeguard your line today.
