X-ray Inspection Systems Fish Bone X-ray Inspection System CSS-F-4610

Detect 0.05mm fish bones with our AI-powered X-ray. Our specialized system uses a unique algorithm and 4K display for ultimate precision.

Categories	X-ray Inspection Systems
Trademark/Brand	SameGram
Model	CSS-F-4610
Download
Update Time	Nov 15,2025

Contact Now

Detail Information

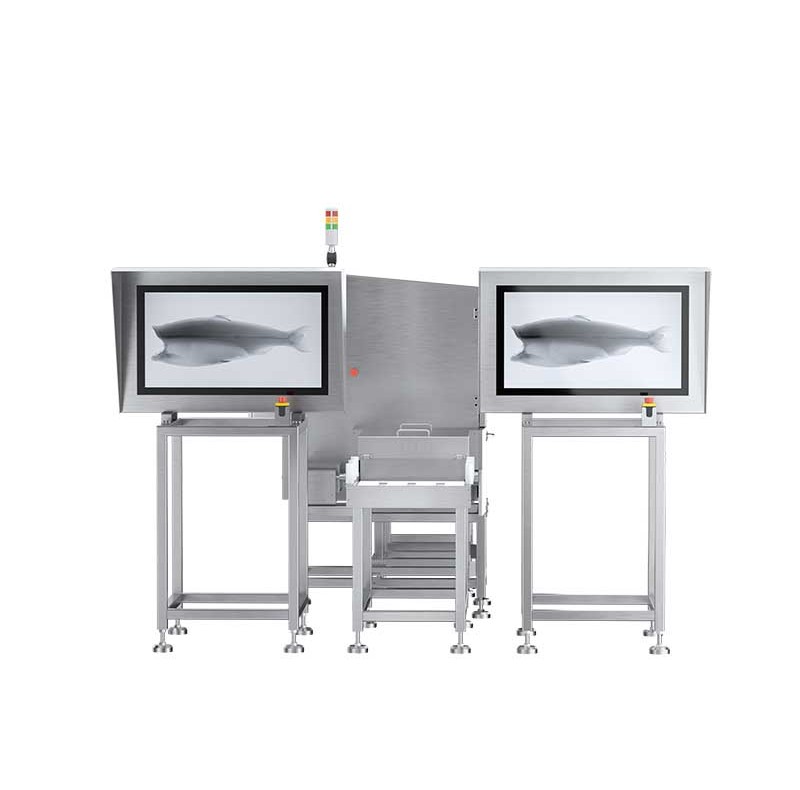

X-ray Inspection Systems Fish Bone X-ray Inspection System CSS-F-4610

Introduction

Ensure your seafood is perfectly safe and bone-free with our advanced x ray inspection systems for fish. Our industry-leading fish bone x-ray inspection system is engineered with a specialized AI algorithm (Diffusion-SvFisher) to solve the critical challenge of detecting tiny, non-calcified bones down to 0.05mm. This powerful x ray inspection system functions as the ultimate x ray machine food inspection solution for fish processors. The fish x-ray inspection system features a 4K display to pinpoint bone locations, assisting manual removal for zero-residue quality. Trust our dedicated x ray inspection systems to protect your brand and deliver the highest quality fish products to the market.

X-ray Inspection Systems Fish Bone X-ray Inspection System CSS-F-4610 Features

Multi-Lane Checkweigher with Flexibility

Proprietary AI Algorithm

Utilizes the unique ZeroShot-SvDetector deep learning algorithm for customized foreign object detection solutions for various packaged products.

Superior Precision and Stability of multi-lane checkweigher

Premium Stainless Steel Build

Constructed with high-grade, food-safe stainless steel (e.g., SUS304) for maximum durability, hygiene, and resistance to harsh washdown environments.

the multihead checkweigher conform to GMP-Compliant Design

Comprehensive Detection Range

Capable of detecting multiple types of foreign objects, including metal, glass, ceramics, stones, rubber, and hard plastics.

Customizable Checkweigher Up to 20 Lanes

Intelligent Auto-Rejection

AI instantly identifies foreign objects, pinched material, and broken bags, automatically rejecting defective products with stable performance for large and medium-sized packages.

The multi-lane checkweighers is Compact and Modular Construction

Flexible Connectivity

Supports multiple connection methods, including 4G wireless and wired networks, for remote technical support and operation.

The multi lane checkweigher has Massive Data Storage and Traceability

Wide Application Scope

Ideal for a broad range of food products, including snack foods, sauces/seasonings, meat products, frozen foods, and dairy products.

Fish Bone X-ray Inspection System CSS-F-4610 Technical Parameters

Model	XSS-F4610
X-ray Source (Unit: W)	350W beryllium window
Inspection Accuracy	Stainless steel wire 0.05*6mm (unloaded, subject to change depending on the sample, actual test results shall prevail)
Operating Software	Self-developed Sooview detection software
Human Machine lnterface	21.5-inch/43-inch high-definition monitor
Conveyor Belt Speed	10-25m/min
Inspection Weight	<10Kg
Inspection Dimensions	450mm*100mm
Power Supply	AC220V、2.1kvA、50Hz
Temperature and Humidity	Ambient temperature -10~45'℃,relative humidity 30~85%(non-condensing)
Waterproof Rating	Conveyor is lP66, other parts are lP65
Equipment Materials	316Lstainless steel, brushed finish
