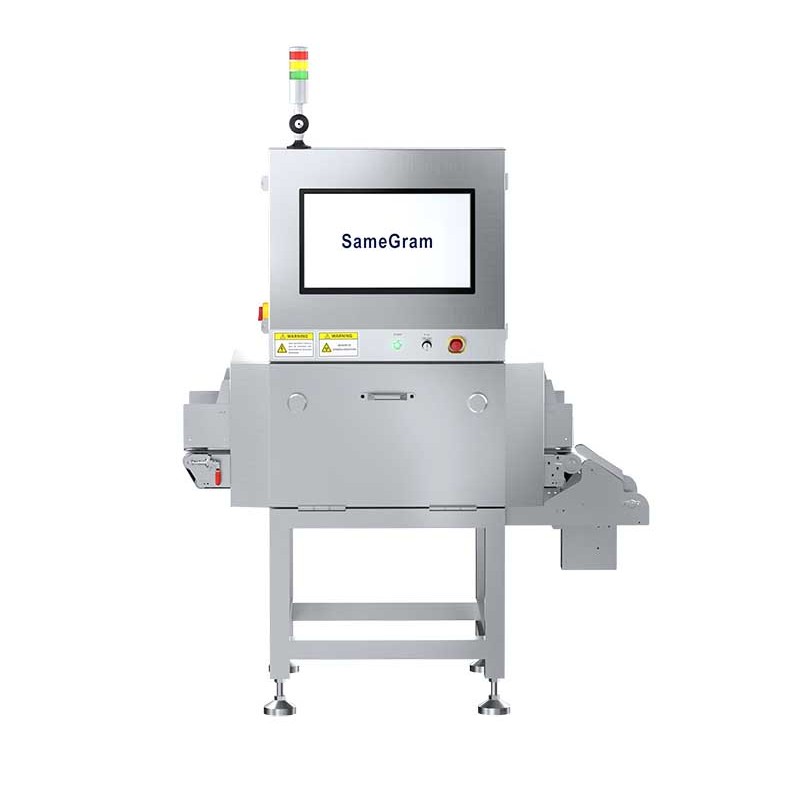

High-precision X-ray Inspection Systems for Packaged Products CSS Series

High-precision X-ray inspection with 0.2mm resolution. uses a unique deep learning algorithm and offers 4G remote support.

Categories	X-ray Inspection Systems
Trademark/Brand	SameGram
Model	CSS series
Download
Update Time	Nov 15,2025

Contact Now

Detail Information

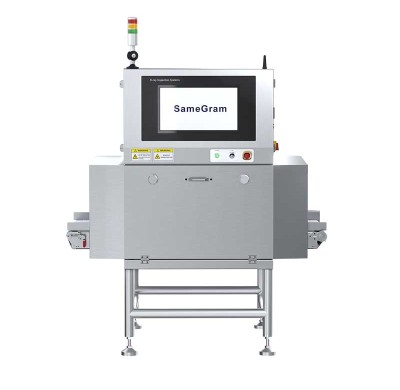

Standard Machine for X-ray Inspection System of Bagged Products CSS series

Introduction

Discover our advanced industrial x-ray inspection systems and high-performance x ray inspection machines, engineered for superior quality control. We provide specialized food x-ray inspection systems and versatile x-ray inspection systems for packaged products. Our solutions feature a cutting-edge real time x ray inspection system, powered by a unique ZeroShot-SvDetector deep learning algorithm for unmatched accuracy. This system delivers immediate, high-precision detection (down to 0.2mm) of foreign bodies like metal, glass, and hard plastics. With robust 304 stainless steel construction and 4G remote support, we ensure the highest safety and operational uptime for your production line.

X-ray Inspection System of Bagged Products CSS series Features

Multi-Lane Checkweigher with Flexibility

Proprietary AI Algorithm

Utilizes the unique ZeroShot-SvDetector deep learning algorithm for customized foreign object detection solutions for various packaged products.

Superior Precision and Stability of multi-lane checkweigher

Premium Stainless Steel Build

Constructed with high-grade, food-safe stainless steel (e.g., SUS304) for maximum durability, hygiene, and resistance to harsh washdown environments.

the multihead checkweigher conform to GMP-Compliant Design

Comprehensive Detection Range

Capable of detecting multiple types of foreign objects, including metal, glass, ceramics, stones, rubber, and hard plastics.

Customizable Checkweigher Up to 20 Lanes

Intelligent Auto-Rejection

AI instantly identifies foreign objects, pinched material, and broken bags, automatically rejecting defective products with stable performance for large and medium-sized packages.

The multi-lane checkweighers is Compact and Modular Construction

Flexible Connectivity

Supports multiple connection methods, including 4G wireless and wired networks, for remote technical support and operation.

The multi lane checkweigher has Massive Data Storage and Traceability

Wide Application Scope

Ideal for a broad range of food products, including snack foods, sauces/seasonings, meat products, frozen foods, and dairy products.

X-ray Inspection System of Bagged Products CSS Series Technical Parameters

Model	XSS-2410	XSS-4016	XSS-6030	XSS-6040	XSS-7040
X-ray Source (Unit: W)	210	240	240/350	240/350	350
Detector Resolution	0.4mm (unloaded; actual accuracy may vary depending on the sample material and is subject to testing)
Inspection Accuracy	SUS sphere:0.4mm,glass:1.0mm, ceramic: 1.0mm, SUS wire: 0.2*5mm
Operating Software	Self-developed Sooview detection software
Human Machine lnterface	21.5-inch touchscreen
Conveyor Belt Speed	10-60 m/min
Inspection Weight	<10Kg
Inspection Dimensions	240*50mm	400*120mm	600*200mm	600*300mm	700*300mm
Power Supply	AC 220V2.0kw 50hz
Temperature and Humidity	Ambient temperature 0~45'C,relative humidity 30~85%(non-condensing)
Waterproof Rating	Conveyor is lP66, other parts are lP54
Equipment Materials	304 stainless steel, brushed finish
