Home / All / Weight Sorting Machine / Automatic Multistage Weight Sorting Machine for Sea Food – SWS-5012L2-C6

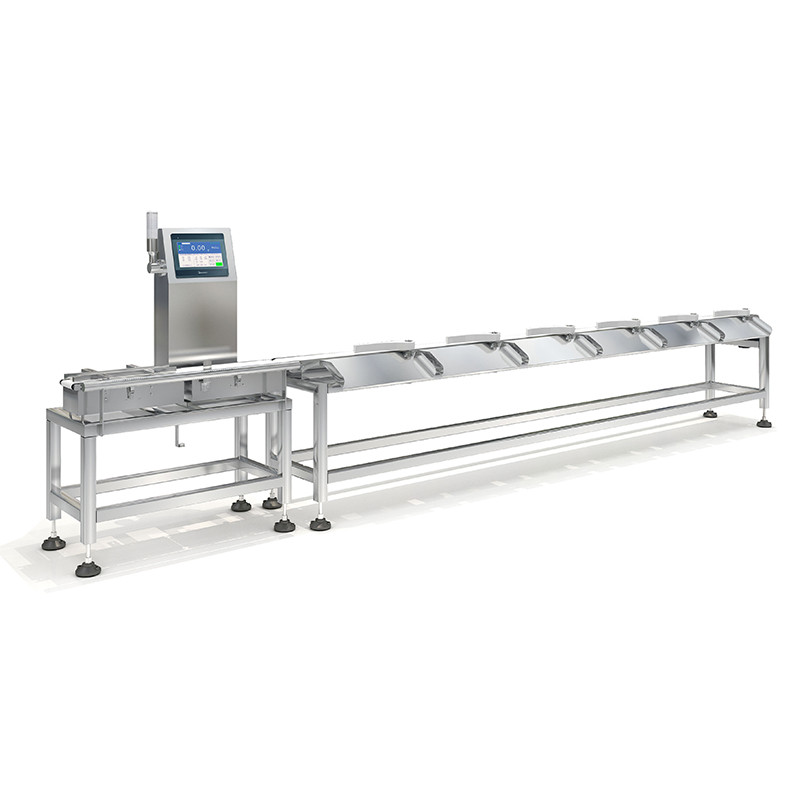

Automatic Multistage Weight Sorting Machine for Sea Food – SWS-5012L2-C6
Six-arm weight sorter ensures precise, hygienic food-grade sorting with waterproof protection for fish, poultry, and seafood.
| Share | |
|---|---|
| Categories | Weight Sorting Machine |
| Trademark/Brand | SameGram |
| Model | SWS-5012L2-C6 |
| Weighting range | 1-2000g |
| Weighting section size | L500mm*W120mm |
| Belt speed | 5-90m/min |
| Sorting port number | 1-20 grade customizable |
| Weighting accuracy | ±0.3-2g |
| Rejection mode | Air blowing, push rod, lever, up and down flip ... |
| Download |  |
| Update Time | Dec 18,2025 |
Detail Information
Details
Automatic Multistage Weight Sorting Machine for Sea Food – SWS-5012L2-C6
Introduction
The SWS-5012L2-C6 automatic weight sorting machine is a high-precision multistage weight sorter designed for fast and accurate classification of products. With 6 adjustable sorting arms, customizable from 1 to 20 levels, it can be adapted for various production requirements. Its conveyor-based design is durable, waterproof, and suitable for high-humidity environments.
Widely used in food, pharmaceutical, and electronics industries, this industrial weight sorter replaces manual sorting, enhances efficiency, and ensures consistent weight accuracy. Fully compatible with ERP/MES systems, it integrates seamlessly into production lines for automated in-line weight sorting.
Automatic Multistage Weight Sorting Machine for Sea Food – SWS-5012L2-C6
Features
Automatic Multistage Weight Sorting Machine for Sea Food – SWS-5012L2-C6
Technical Parameters
| Product model | SWSS-5012L2 | |
| Weighting range | 1-2000g | |
Weighting section size | L500mm*W120mm | |
Belt speed | 5-90m/min | |
Air pressure interface | φ8mm | |
Case material | 304 stainless steel | |
Conveying direction | Facing the machine, left in and right out | |
Display division | 0.1g | |
| Weighting accuracy | ±0.3-2g | |
| Applicable product size | L≤350mm；W≤120mm | |
Storage formula | 100 types | |
| Power supply | AC220V±10% | |
Air source | 0.5-0.8MPa | |
Data transmission | USB data export | |
Sorting port number | 1-20 grade customizable | |
Rejection mode | Air blowing, push rod, lever, up and down flip plate, turntable type optional | |
Operation screen | 10-inch Weiluntong color touch screen | |
| Control system | Samegram online weighing control system V1.0.5 | |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor | |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
Automatic Multistage Weight Sorting Machine for Sea Food Applications
This weight sorting machine is especially suited for industries where items vary in size, shape, or weight — ensuring consistent sorting and packaging standards. Here are a few prime sectors where SWS-5012L2-C6 excels:
shrimp, scallops, fish fillets, shellfish, or other aquatic products: the machine handles weight grading and sorting automatically, ensuring each package or batch meets required weight grades before packaging or freezing.
or produce packing operations, weight-based sorting helps categorize items (e.g. peaches, durians, or other fruits) into size/weight grades for retail packaging or box packing.
for small manufactured items or components requiring precise weight-based sorting (e.g. nuts, bolts, plastic parts, small electronic modules), this machine ensures uniformity and quality control, replacing slow and error-prone manual sorting.
Automatic Multistage Weight Sorting Machine for Sea Food Applications
Why Choose Weight Sorting Machine SWS-5012L2-C6 from SameGram
Specialized for multi-item weight grading rather than standard checkweighing
designed for multistage sorting with up to 20 weight grades, not just pass/fail checkweighing.
Proven across food (seafood, fruit), produce, and industrial product industries
versatile enough to handle delicate aquatic goods, produce items, and small hardware or components.
High precision + high throughput
delivers both accuracy (±0.3–2 g) and speed (adjustable belt 5–90 m/min), with configurable rejection and sorting
Hygienic, durable, and water-resistant build
suitable for wet, washdown environments common in seafood/produce processing.
Flexible customization and easy integration
customizable grading levels, adjustable conveyors, multiple rejecting options, and data output — convenient for diverse production requirements and downstream systems.
What Makes SWS-5012L2-C6 Stand Out Technology & Performance
High-Precision Dynamic Weighing & Sorting
Equipped with a digital weighing system and high-precision load cell, the unit delivers weighing accuracy of ±0.3–2 g, enabling reliable grading even for small weight differentials.
Flexible Multi-Grade Sorting Up to 20 Levels
Supports customizable sorting bins/ports from 1 up to 20 grades, allowing fine-tuned classification for packaging, retail, or quality control needs.
Robust, Hygienic & Waterproof Build
Constructed with 304 stainless steel and waterproof (IP65) protection, making it suitable for wet, high-humidity or washdown environments — ideal for seafood, produce, or other hygiene-sensitive processing lines.
Adaptive Conveyor & Ejection System
Adjustable belt speed (5–90 m/min), modular conveyors, and multiple rejection modes (air-blowing, push-rod, lever, flip-plate, turntable) give flexibility to handle different product types, sizes, and sorting requirements.
Integrated Data & Control System
Built-in control system supports data export (USB), storage of multiple product presets, and easy switching between recipes — facilitating traceability and rapid changeovers between product types.
These features make SWS-5012L2-C6 a reliable, high-throughput sorting solution suitable for modern automated lines, far beyond simple manual sorting or basic checkweighers.
Automatic Multistage Weight Sorting Machine for Sea Food Installation & Recommendations
These features make SWS-5012L2-C6 a reliable, high-throughput sorting solution suitable for modern automated lines, far beyond simple manual sorting or basic checkweighers.
Ensure stable, level foundation
Install the machine on a flat, vibration-free floor, especially in seafood, produce, or industrial lines where conveyors, washers, or other heavy equipment operate nearby.
Configure appropriate reject mechanism and bin layout
according to product type (e.g. delicate seafood vs rigid hardware) — ensure spacing and ejection timing matched to belt speed and product size.
Set correct parameters & presets
For different product types (seafood, fruit, hardware), predefine product recipes (weight thresholds, sorting grades, belt speed) to speed up changeovers and reduce error.
Maintain hygiene and cleaning protocols
For food/seafood/fruits lines, use materials and washes compatible with stainless steel and waterproof design; avoid corrosive chemicals; ensure no direct water ingress in electrical/control modules — the IP65-rated design helps, but proper maintenance is still recommended.
Integrate with upstream/downstream systems
Use the built-in data export and control interface to connect with packaging, labeling, or ERP/MES systems for traceability and automatic sorting logging.
Automatic Multistage Weight Sorting Machine for Sea Food FAQs
Q1. What weight range and product sizes can SWS-5012L2-C6 handle?
A1. The standard weighing range is 1–2000 g; the defined conveyor section is L 500 mm × W 120 mm. For most seafood, produce, small hardware or component items falling within these dimensions and weight ranges, the machine can handle reliably
Q2. How many weight grades (sorting levels) can I define?
A2. The system supports customizable sorting levels from 1 up to 20 grades. This makes it flexible for coarse-to-fine grading depending on your product requirements.
Q3. Is it suitable for wet or humid processing environments (e.g. seafood, fish)?
A3. Yes. The machine is constructed using stainless steel with waterproof protection (IP65), making it appropriate for seafood, fish, or other wet-environment production lines.
Q4. What kinds of rejection mechanisms are available?
A4. Multiple rejection modes are optional: air-blowing, push-rod, lever-based, flip-plate, turntable — you can choose based on product fragility, shape, and sorting speed requirements.
Q5. Can it store multiple product recipes or presets for quick switching?
A5. Yes — the machine supports storage of multiple product parameter sets and quick switching, enabling efficient changeovers between different product lines.
