In the competitive landscape of modern food processing, precision is not just a preference—it is a regulatory requirement and a cornerstone of brand integrity. For seafood and meat processors, achieving consistent product grading while maintaining high-speed throughput is a constant challenge. This is where the Weight Sorting Machine (also known as a weight grader or checkweigher) becomes an indispensable asset on the factory floor.
At SameGram, we specialize in high-performance dynamic weighing solutions that bridge the gap between manual labor and fully automated efficiency. Our flagship model, the SWS-4523L2-C6 Swing Arm Type Fish Meat Sorting Weighing Machine, represents the pinnacle of seafood grading technology, ensuring every piece of product meets exact weight specifications before it reaches the consumer.
1. Authoritative Definition: What is a Weight Sorting Machine?
A Weight Sorting Machine is an automated industrial system designed to measure the mass of individual products while they are in motion on a conveyor belt. Unlike static scales, these systems use advanced digital signal processing to capture accurate weights in milliseconds.
The primary function of a weight sorting machine in a food factory is twofold:
● Dynamic Checkweighing: Identifying and removing "underweight" or "overweight" items to prevent product giveaway or non-compliance with labeling laws.
● Grade Classification: Categorizing products (such as fish fillets, poultry breasts, or seafood) into specific weight "bins" or "zones" based on preset parameters.
For industries dealing with natural products like fish, where weights vary significantly, a specialized Weight Sorting Machine ensures that the final packaging is uniform, which is critical for both pricing accuracy and cooking consistency for the end-user.
2. Working Principle: The Science of Precision Motion

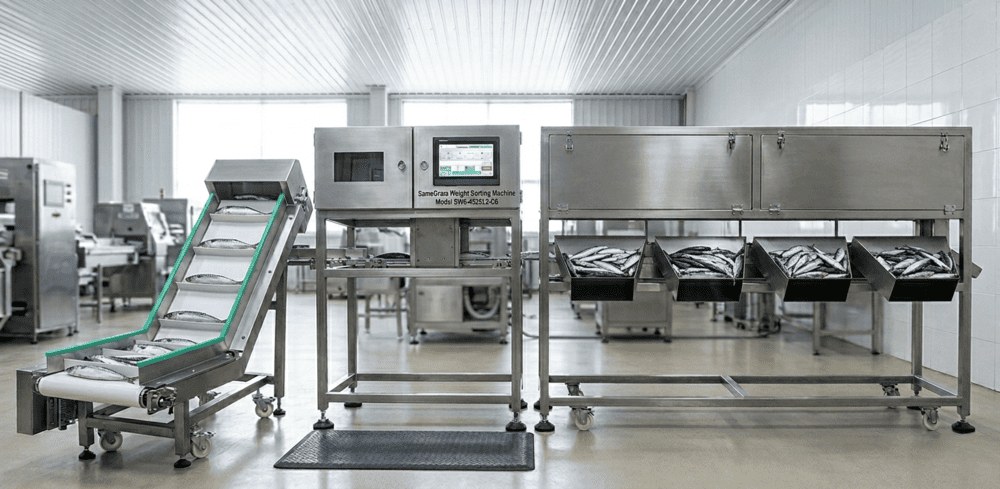

The SameGram SWS-4523L2-C6 utilizes a sophisticated "Swing Arm" rejection mechanism, which is particularly effective for delicate materials like fish meat. The process follows a highly synchronized four-stage workflow:
1. Feeding Zone: The product (e.g., a whole fish or fillet) enters the system via a high-speed conveyor. The spacing is automatically managed to ensure only one item is on the weighing platform at a time.
2. Dynamic Weighing: As the fish passes over the ultra-sensitive load cells, the system calculates its weight with surgical precision. Our proprietary algorithms filter out mechanical vibrations from the factory floor to ensure data purity.
3. Data Processing: The central PLC (Programmable Logic Controller) compares the detected weight against the user-defined grading criteria (e.g., Grade A: 100-200g, Grade B: 201-300g).

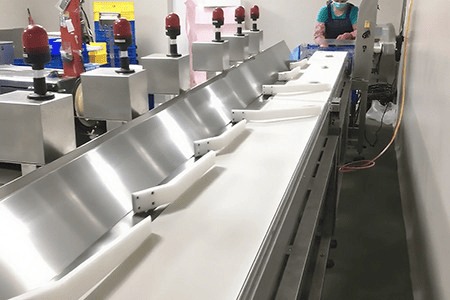

4. Swing Arm Rejection: Based on the weight result, a fast-acting swing arm rotates with precision. It gently directs the fish down an inclined surface into the designated collection area. This "positive and negative selection" allows for multiple grading exits within a compact footprint.
5. This seamless integration of hardware and software reduces the "cumbersome" nature of manual weighing, allowing factories to process thousands of units per hour with minimal human intervention.
When selecting a Weight Sorting Machine, technical specifications are the key to ensuring it fits your specific production needs. The SameGram SWS-4523L2-C6 is engineered for high-accuracy, small-to-medium-weight applications.
| Feature | Specification | ||
Product Model | SWS-4523L2-C6 | ||
Weight Range | 1g ~ 2000g | ||
Detection Accuracy | ±0.3-2g (Depending on product speed/size) | ||
| Rejection Device | Swing Arm (Positive and Negative Selection) | ||
| Construction Material | Food-grade SUS304 Stainless Steel | ||
| Control System | SameGram Intelligent PLC with Multi-Language HMI | ||
4. Application Scenarios: Seafood and Beyond
While the Weight Sorting Machine is a versatile tool, it excels in the seafood processing industry. A typical application involves the grading of high-value fish.
Case Study: Fish Fillet Grading
In a seafood processing plant, fish fillets vary in size. To sell these to supermarkets or restaurants, they must be sorted into uniform weight classes. The SWS-4523L2-C6 allows the plant to:
● Sort fillets into 5-10 different weight grades simultaneously.
● Ensure that "Premium" 400g packs contain exactly 400g of product.
● Protect the delicate texture of the meat; the swing arm mechanism is designed to be "gentle," preventing the bruising that can occur with "pusher" type rejectors.
The Advantages of Automation Integration:
Integrating a SameGram Weight Sorting Machine into your existing production line offers unparalleled convenience. Our systems are designed with a "modular" philosophy, meaning they can be easily linked to upstream slicing machines and downstream vacuum packaging units. This creates a "hands-free" environment that significantly improves hygiene levels and reduces labor costs.
5. Industry Standards and Regulatory Compliance
In the global food market, compliance is non-negotiable. Using a Weight Sorting Machine helps your facility adhere to international standards such as HACCP, FDA, and CE certifications.
● Weight & Measures Regulations: Most countries have strict laws regarding "e-marking" and net weight. A SameGram system provides a digital audit trail, proving that your products are consistently within legal tolerances.
● Data Logging: Our machines feature advanced data export functions. You can track total weight, count, and rejection rates in real-time, which is essential for quality audits and production optimization.
6. Common Myths vs. The Reality of Automated Sorting
Myth 1: "Manual sorting is more accurate for irregular shapes."
● Reality: Human fatigue leads to errors, especially after hours of repetitive work. The SWS-4523L2-C6 uses high-speed sensors that don't get tired, maintaining ±0.3-2g accuracy 24/7.
Myth 2: "Weight sorting machines are too difficult to clean."
● Reality: At SameGram, we prioritize sanitary design. Our Weight Sorting Machines feature quick-release belts and open-frame stainless steel construction, allowing for thorough wash-downs to prevent bacterial growth.
Myth 3: "Automation is only for large-scale factories."
● Reality: Small-to-medium enterprises (SMEs) often see the fastest ROI. By reducing product giveaway and labor by just 20%, a Weight Sorting Machine often pays for itself within the first year of operation.
7. FAQ: Everything You Need to Know
Q: How does the swing arm handle different fish sizes?
A: The SWS-4523L2-C6 is designed for a weight range of 1-2000g. The swing arm's timing and force are adjustable via the HMI, ensuring it can handle anything from small shrimp to medium-sized fish fillets without damage.
Q: Can the Weight Sorting Machine integrate with my current conveyor?
A: Yes. SameGram systems are designed for seamless integration. We offer adjustable heights and customizable belt speeds to match your existing production flow.
Q: What happens if the weight is outside the 1-500g range?
A: The system can be programmed to trigger an alarm or direct the "out-of-range" item to a specific reject bin for manual inspection.
Q: How often does the machine need calibration?
A: While our sensors are highly stable, we recommend a simple daily calibration check using a standard test weight, which takes less than two minutes via the automated software interface.
8. About SameGram: Your Partner in Precision
Since our inception, SameGram has been at the forefront of the weighing and sorting industry. Our state-of-the-art factory is dedicated to the research, development, and manufacturing of high-end Checkweighers and Weight Sorting Machines. We believe that "Precision drives Profit," and every piece of equipment we ship is a testament to that philosophy.
Our manufacturing facility utilizes advanced CNC machining and rigorous quality control protocols to ensure that every SameGram product—from our basic checkweighers to our complex multi-lane sorting systems—performs flawlessly in harsh factory environments.
Why Choose SameGram?
● Expert Engineering: Our team understands the nuances of dynamic weighing.
● Global Support: We provide comprehensive technical guidance and after-sales service.
● Customization: We don't just sell machines; we provide solutions tailored to your specific product and factory layout.
