SameGram Dynamic Checkweigher: Small Bag Snack Packaging Case Study
In the fast-paced world of snack manufacturing, consistency is not just a goal—it is a regulatory and operational necessity. As production lines speed up to meet global demand, the risk of delivering under-filled or over-filled packages increases. This is where the Dynamic Checkweigher becomes an indispensable asset. At SameGram, we specialize in providing high-performance weighing solutions that ensure every "Small Bag Packaging" snack meets the exact weight requirements before it reaches the consumer.
1. Authority Definition: What is a Dynamic Checkweigher?
A Dynamic Checkweigher is a high-precision, automated industrial weighing instrument used to measure the weight of products as they move across a production line. Unlike static scales that require a product to be stationary, a dynamic system captures weight data in real-time at high speeds.
For SameGram, a Dynamic Checkweigher is more than just a scale; it is a critical "gatekeeper" for quality control. It is designed to verify that the weight of each individual package falls within a predefined tolerance range. Beyond simple weighing, these systems are integral to identifying packages that may contain foreign objects or missing components, ensuring that every product leaving the SameGram Factory or your facility is compliant with international weights and measures regulations.
2. How It Works: The Science of Precision in Motion

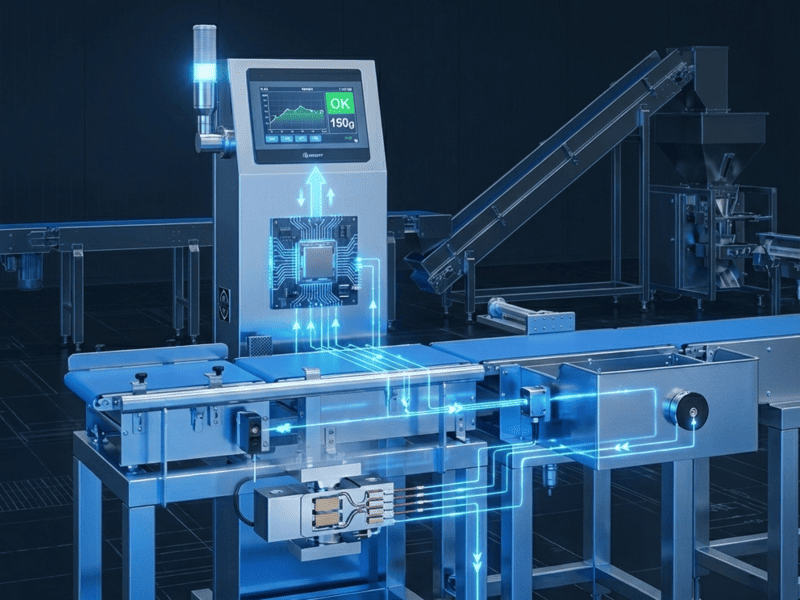

The operational efficiency of a SameGram Dynamic Checkweigher relies on a sophisticated three-stage process that happens in fractions of a second:
1. Infeed Section: Small snack bags are spaced appropriately to ensure only one package is on the weigh-cell at a time.
2. Weighing Section: As the bag passes over the high-precision load cell, the system samples the weight thousands of times per second. SameGram’s advanced filtering algorithms eliminate vibrations from the factory floor to ensure a "true weight" reading.
3. Outfeed & Rejection: If a bag is detected as under-weight (incomplete fill) or over-weight (potentially containing foreign matter or excess product), the system triggers a rejection mechanism.

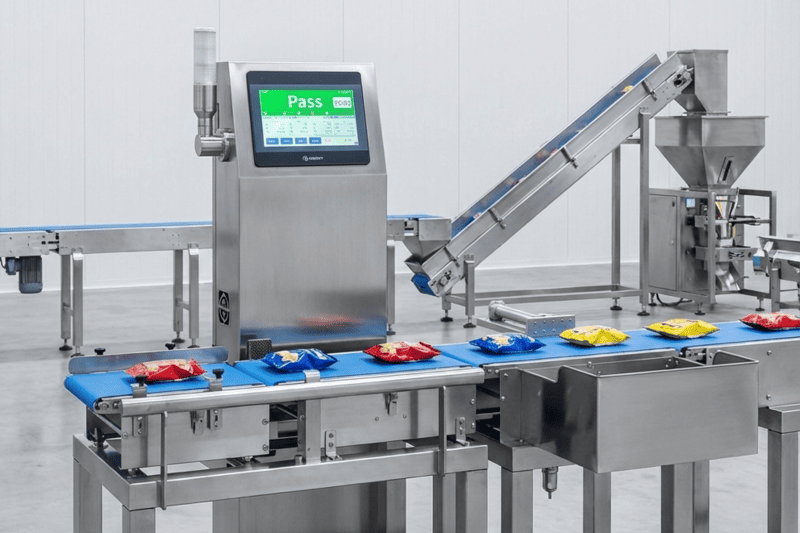

Case Study Focus: The Blow-Off Rejection System
In our recent application for small bag snack packaging, we utilized a high-speed air blow-off rejector. As seen in our application video, the SameGram system identifies a non-compliant bag and instantly blasts it off the line into a collection bin using a precise puff of compressed air. This method is ideal for lightweight snack packaging as it avoids physical contact that could damage fragile contents like potato chips or crackers.
3. Technical Parameters and Performance Range
When selecting a Dynamic Checkweigher, understanding the technical capabilities is vital for ensuring it matches your production throughput. SameGram products are engineered to meet diverse industrial needs:
| Parameter | Specification Range (Typical SameGram Models) | ||
Weighing Range | 10g – 2000g (Optimized for small bags) | ||
Highest Accuracy | ±0.1g to ±0.5g (Depending on speed/weight) | ||
Max Speed | Up to 150 - 200 pieces per minute (PPM) | ||
| Belt Width | 100mm / 150mm / 220mm (Customizable) | ||
| Construction Material | SUS304 Stainless Steel (Food Grade) | ||
| Rejector Types | Air Blow, Pusher, Flap, or Diverter | ||
4. Application Scenarios: Beyond Snack Packaging
While our current case study focuses on Small Bag Packaging Snack Checkweighers, the versatility of SameGram’s technology allows it to thrive in various environments:
● Pharmaceuticals: Ensuring every blister pack contains the correct number of tablets.
● Cosmetics: Verifying the fill-level of lotions and creams to prevent waste.
● Frozen Foods: Detecting ice buildup or missing components in packaged meals.
● Chemicals: Ensuring heavy-duty bags meet safety shipping standards.
The integration of a Dynamic Checkweigher into an automated line offers unparalleled convenience. It allows for "feedback control," where the checkweigher communicates with the filling machine to automatically adjust the volume if it detects a trend toward under-filling, effectively eliminating manual intervention.
5. Industry Standards and Regulatory Compliance
In the food and snack industry, compliance is non-negotiable. Using a SameGram checkweigher helps your facility adhere to:
● HACCP & GMP: Critical for identifying contaminated or non-conforming batches.
● OIML R51: The international standard for automatic weighing instruments.
● FDA & CE Standards: Ensuring the equipment is safe for food contact and electronic operation.
By implementing our systems, you ensure that your "Small Bag" products are not flagged for "short-weight" by regulatory bodies, protecting your brand reputation and avoiding heavy fines.
6. Common Misconceptions vs. The SameGram Reality
Misconception 1: "A static scale is enough for quality control."
Reality: Static scales are slow and require manual labor. A Dynamic Checkweigher from SameGram provides 100% inspection at full production speed, catching errors that random sampling would miss.
Misconception 2: "Checkweighers are only for weight."
Reality: While their primary function is weighing, they act as a safeguard against foreign objects. If a metal fragment or a dense foreign body accidentally enters a snack bag, the sudden weight spike allows the system to reject the package immediately, acting as a secondary safety check alongside metal detectors.
7. Structured FAQ (Search Engine Optimized)
Q: How does a Dynamic Checkweigher improve production efficiency?
A: It automates the inspection process, allowing for 100% product checking without slowing down the line. It reduces product "giveaway" (overfilling) and eliminates the labor costs associated with manual weighing.
Q: Can SameGram checkweighers handle different bag sizes?
A: Yes. Our systems feature a user-friendly HMI (Human Machine Interface) that allows operators to switch between pre-set product recipes in seconds, adjusting the sensitivity and speed for different bag weights.
Q: What happens if the checkweigher breaks down?
A: SameGram designs for reliability. Our About Us page details our commitment to support and durability. Our systems feature modular components that are easy to maintain, ensuring minimal downtime for your snack packaging line.
Q: Is the air blow-off rejector suitable for all products?
A: It is best suited for lightweight products (under 500g) like snack bags. For heavier boxes, SameGram recommends our pusher or arm-style rejectors.
8. Official Statement: Why Choose SameGram?
At SameGram, we understand that in the world of automated manufacturing, precision is the heartbeat of profitability. With decades of engineering excellence, we don't just sell machines; we provide comprehensive quality assurance solutions. From our state-of-the-art Manufacturing Facility to your production floor, we ensure that every Dynamic Checkweigher we deliver is optimized for your specific needs.
Whether you are packaging delicate snacks or heavy industrial goods, SameGram is your partner in achieving zero-defect production.
