Dynamic Checkweigher: High-Precision Automated Weight Detection
In the fast-paced world of industrial manufacturing, the difference between a loyal customer and a costly product recall often comes down to a few grams. Whether you are packaging pharmaceuticals, food, or household goods like facial tissues, precision is non-negotiable. At SameGram, we understand that "good enough" isn't an option for your brand reputation. Our high-precision Dynamic Checkweigher systems are engineered to ensure that every box leaving your facility is perfect—down to the very last item.
1. Authoritative Definition: What is a Dynamic Checkweigher?
A Dynamic Checkweigher is an automated high-speed weighing system used within production lines to measure the weight of individual products while they are in motion. Unlike static scales that require the production flow to stop, a dynamic system provides real-time data at full line speeds.
For global manufacturers, the Dynamic Checkweigher serves as the final "gatekeeper" of quality control. It is designed to verify that the weight of a finished package matches the predetermined specifications. Beyond simple weight verification, these systems are critical for ensuring compliance with international "Average Weight" legislation and identifying packages that may contain foreign objects or lack essential components (such as a missing instruction manual or a single piece of product).
2. Working Principle: Precision in Motion
The core of the SameGram Dynamic Checkweigher lies in its sophisticated combination of electromagnetic force restoration (EMFR) or high-precision load cells and advanced signal processing.
The Process in Action:
1. Infeed: Products move from the upstream conveyor onto the weighing platform.
2. Weighing: As the product crosses the weighbridge, the system samples the weight thousands of times per second. SameGram’s proprietary filtering algorithms eliminate environmental vibrations to ensure a stable reading.
3. Processing: The controller compares the actual weight against the target weight and pre-set tolerances (Underweight/Overweight/OK).
4. Rejection: If a discrepancy is found—even if it is as light as a single tissue—the sorting unit (pusher, air blast, or flipper) smoothly removes the defective product from the line without stopping production.
Case Study:
The "Single Tissue" Test In our latest performance showcase, a SameGram checkweigher demonstrated its industry-leading sensitivity. In a high-speed packaging scenario for boxed tissues, our system successfully detected and rejected a box that was missing just one single tissue. This level of accuracy prevents "slack fill" complaints and ensures your customers always receive exactly what they paid for.
3. Technical Parameter Range: SameGram Standard
Our systems are built to handle diverse industrial needs, from lightweight sachets to heavy-duty cartons. Below is the general performance range for our Dynamic Checkweigher series:
● Weight Range: 5g to 50,000g (Depending on model)
● Maximum Accuracy: ±0.1g to ±1g
● Maximum Speed: Up to 300 pieces per minute (PPM)
● Belt Width: 150mm to 600mm
● Construction: Full SUS304 Stainless Steel (IP65/IP66 rated for washdown environments)
● Control System: 10-inch Full-Color Touchscreen HMI with data export capabilities (USB/Ethernet)
4. Application Scenarios: Seamless Integration into Automated Lines
Integrating a Dynamic Checkweigher into your automated production line is not just about compliance; it’s about operational efficiency.
● Missing Component Detection: Essential for kits or multi-pack products. If a box of electronics is missing a screw pack, or a tissue box is missing a few sheets, the system detects it instantly.
● Foreign Body Verification: Because our sensors are so sensitive, any unauthorized foreign object that alters the expected weight profile of the product can be flagged, ensuring the safety and purity of your output.

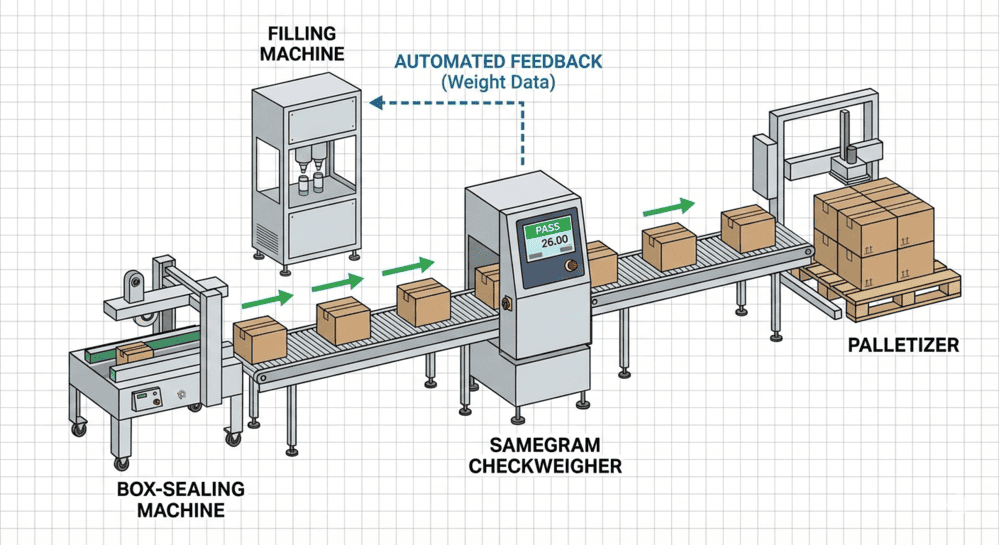

● Automated Feedback Control: SameGram systems can be linked to filling machines to provide real-time feedback, automatically adjusting fill levels if weights start to drift, thereby reducing product giveaway and saving costs.
The Convenience of SameGram Systems: Our modular design allows for "Plug-and-Play" installation. Whether you are upgrading a legacy line or building a new smart factory, our checkweighers fit seamlessly between your primary packaging and secondary casing units.
5. Industry Standards and Regulations
Global trade requires adherence to strict standards. Using a Dynamic Checkweigher ensures your facility meets:
● HACCP & GMP: Critical for food and pharmaceutical safety.
● OIML & MID: Standards for measuring instruments in legal metrology.
● FDA Compliance: Ensuring consistent weight and volume for regulated goods.
By maintaining digital records of every weighing event, SameGram helps you pass audits with ease, providing the "Paper Trail" necessary for modern regulatory transparency.
6. Common Misconceptions vs. Reality
Misconception 1: "Static scales are just as good for quality control."
● Reality: Static scales require manual intervention and slow down the line. A Dynamic Checkweigher maintains 100% inspection rates at full speed, eliminating human error.
Misconception 2: "Checkweighers only detect if a product is too light."
● Reality: Overweight products represent "product giveaway," which directly eats into your profit margins. SameGram systems optimize your ROI by minimizing overfill.
Misconception 3: "These machines are too sensitive for vibrating factory floors."
● Reality: SameGram uses advanced anti-vibration technology and digital filtering, ensuring that the movement of nearby heavy machinery does not affect the accuracy of the weight detection.
7. FAQ (Structured Data)
Q: Can the Dynamic Checkweigher handle different product sizes on the same line?
A: Yes. SameGram systems feature a multi-recipe memory. You can switch between different product profiles (e.g., 50-count tissue boxes vs. 100-count) with a single touch on the HMI.
Q: What happens to the data recorded by the machine?
A: All weight data is stored locally and can be exported via USB or integrated into your factory’s ERP/MES system for real-time production monitoring.
Q: How difficult is maintenance?
A: Our checkweighers are designed with quick-release belts and a tool-less maintenance philosophy. The SUS304 stainless steel frame ensures durability even in harsh industrial environments.
Q: How does it detect "foreign objects"?
A: By setting a very tight tolerance for the "Target Weight," any object that adds weight (like a piece of metal or incorrect packaging material) will push the total weight into the "Overweight" or "Anomaly" category, triggering a rejection.
8. Official Statement: Why Choose SameGram?
At SameGram, we are more than just an equipment manufacturer; we are your partners in production excellence. Based in our state-of-the-art SameGram Factory, our engineering team focuses on delivering precision, speed, and reliability.
Our Dynamic Checkweigher is the culmination of years of R&D, designed to solve the real-world problems of modern manufacturers. From the sensitivity to detect a single missing tissue to the robustness required for 24/7 industrial operations, SameGram equipment is built to last.
Ready to elevate your production quality? Visit SameGram to explore our full product catalog or learn more About SameGram and our commitment to innovation. Let us help you ensure that every product you ship is a testament to your brand’s quality.
For more information on specific models and customized solutions, please visit our Checkweigher Product Detail.
